Bearings, units and housings -- Super-precision bearings -- Angular contact ball bearings -- Angular contact ball bearings, super-precision -- SKF 7019 CB/HCP4A
7019 CB/HCP4A
Dimensions
| d | 95 | mm | |
| D | 145 | mm | |
| B | 24 | mm | |
| d1 | 113.7 | mm | |
| d2 | 111.15 | mm | |
| D2 | 130 | mm | |
| r1,2 | min. | 1.5 | mm |
| r3,4 | min. | 1 | mm |
| a | 28.2 | mm |

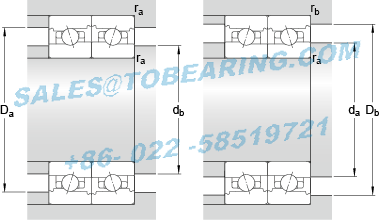

Abutment dimensions
| da | min. | 102 | mm |
| db | min. | 102 | mm |
| Da | max. | 138 | mm |
| Db | max. | 140.4 | mm |
| ra | max. | 1.5 | mm |
| rb | max. | 1 | mm |
| dn | 115 | mm |
Calculation data
| Basic dynamic load rating | C | 37.7 | kN | |
| Basic static load rating | C0 | 44 | kN | |
| Fatigue load limit | Pu | 1 | kN | |
| Attainable speed for grease lubrication | 14000 | r/min | ||
| Attainable speed for oil-air lubrication | 22000 | r/min | ||
| Ball diameter | Dw | 10.319 | mm | |
| Number of balls | z | 26 | ||
| Reference grease quantity | Gref | 14.72 | cm³ | |
| Preload and stiffness (back-to-back, face-to-face) | ||||
| Preload class A | GA | 94 | N | |
| Static axial stiffness, preload class A | 63 | N/µm | ||
| Preload class B | GB | 190 | N | |
| Static axial stiffness, preload class B | 82 | N/µm | ||
| Preload class C | GC | 570 | N | |
| Static axial stiffness, preload class C | 130 | N/µm | ||
| Calculation factors | ||||
| Calculation factor | f | 1.07 | ||
| Calculation factor | f1 | 1 | ||
| Calculation factor | f2A | 1 | ||
| Calculation factor | f2B | 1.02 | ||
| Calculation factor | f2C | 1.05 | ||
| Calculation factor | fHC | 1.01 | ||
| Calculation factor | f0 | 9.7 | ||
Mass
| Mass bearing | 1.23 | kg |
