Bearings, units and housings -- Ball bearings -- Angular contact ball bearings -- Single row angular contact ball bearings -- Angular contact ball bearings, single row SKF 7060 AGM

7060 AGM

Dimensions

d		300	mm
D		460	mm
B		74	mm
d₁	≈	363.6	mm
d₂	≈	335.7	mm
D₁	≈	400	mm
a		147	mm
r_1,2	min.	4	mm
r_3,4	min.	1.5	mm

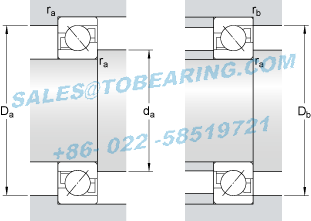

Abutment dimensions

d_a	min.	317	mm
D_a	max.	443	mm
D_b	max.	453	mm
r_a	max.	3	mm
r_b	max.	1.5	mm

Calculation data

Basic dynamic load rating	C	423	kN
Basic static load rating	C₀	695	kN
Fatigue load limit	P_u	15.3	kN
Reference speed		1500	r/min
Limiting speed		1600	r/min
Calculation factor	k_r	0.085
Calculation factor	e	0.8
Single bearing or bearing pair arranged in tandem
Calculation factor	X	0.39
Calculation factor	Y₀	0.33
Calculation factor	Y₂	0.76

Mass

Mass bearing

42.5

Model Number: 7060 AGM
Inner Diameter：300mm Outer Diameter：460mm Width：74mm
Reference speed:1600 r/min Limiting speed:1500 r/min
Type：Bearings, units and housings Ball bearings Angular contact ball bearings Single row angular contact ball bearings
Details： Single row angular contact ball bearings Angular contact ball bearings, single row
Update date：2026-06-24
Application:Energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving,sucker industry,electromyography machine,experimental equipment,Roller,SPA equipment,decoration machinery,Hydraulic Couplings,forklift truck,respirator,car instrument
Similar models:7060 AGM PRM 657060 PRMF 657060 7060 BGM PWM 607060
BEARING POWER International Trading Co.,Ltd. specialize in 7060AGM products，there is large inventory of SKF 7060 AGM Single row angular contact ball bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the 7060 AGM Which SKF 7060AGM is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
