Bearings, units and housings -- Ball bearings -- Angular contact ball bearings -- Single row angular contact ball bearings -- Angular contact ball bearings, single row SKF 718/710 ACMB

718/710 ACMB

Dimensions

d		710	mm
D		870	mm
B		74	mm
d₁	≈	763.8	mm
D₁	≈	819.6	mm
a		221	mm
r_1,2	min.	4	mm
r_3,4	min.	1.5	mm

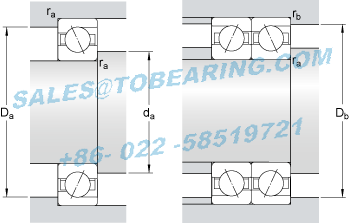

Abutment dimensions

d_a	min.	725	mm
D_a	max.	855	mm
D_b	max.	863	mm
r_a	max.	3	mm
r_b	max.	1.5	mm

Calculation data

Basic dynamic load rating	C	605	kN
Basic static load rating	C₀	1630	kN
Fatigue load limit	P_u	24.5	kN
Reference speed		630	r/min
Calculation factor	k_r	0.08
Calculation factor	e	0.68
Single bearing or bearing pair arranged in tandem
Calculation factor	X	0.41
Calculation factor	Y₀	0.38
Calculation factor	Y₂	0.87
Bearing pair arranged back-to-back or face-to-face
Calculation factor	X	0.67
Calculation factor	Y₀	0.76
Calculation factor	Y₁	0.92
Calculation factor	Y₂	1.41

Mass

Mass bearing

92.4

Model Number: 718/710 ACMB
Inner Diameter：710mm Outer Diameter：870mm Width：74mm
Reference speed:630 r/min Limiting speed:630 r/min
Type：Bearings, units and housings Ball bearings Angular contact ball bearings Single row angular contact ball bearings
Details： Single row angular contact ball bearings Angular contact ball bearings, single row
Update date：2026-06-24
Application:Industrial,food safety,Dental Equipment,switch,screen filter,packing equipment,air shower etc,Hydraulic Equipment,printing machinery,medical treatment,car instrument
Similar models:71813 ACD/HCP4 718/1120 AMB 71828 ACD/P4 71806 CD/HCP4 71804 ACD/P4 71802 ACD/HCP4 71812 CD/P4 71819 ACD/HCP4 71810 ACD/P4 71818 CD/HCP4
BEARING POWER International Trading Co.,Ltd. specialize in 718/710ACMB products，there is large inventory of SKF 718/710 ACMB Single row angular contact ball bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the 718/710 ACMB Which SKF 718/710ACMB is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
