Bearings, units and housings -- Super-precision bearings -- Angular contact ball bearings -- Angular contact ball bearings, super-precision -- SKF 71909 ACE/HCP4AL
71909 ACE/HCP4AL
Dimensions
| d | 45 | mm | |
| D | 68 | mm | |
| B | 12 | mm | |
| d1 | 52.7 | mm | |
| d2 | 51 | mm | |
| D1 | 60.3 | mm | |
| b | 2 | mm | |
| C1 | 5.9 | mm | |
| C2 | 2.3 | mm | |
| C3 | 1.8 | mm | |
| r1,2 | min. | 0.6 | mm |
| r3,4 | min. | 0.3 | mm |
| a | 20 | mm |

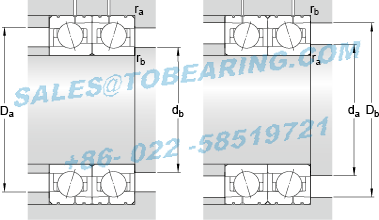

Abutment dimensions
| da | min. | 48.2 | mm |
| db | min. | 47 | mm |
| Da | max. | 64.8 | mm |
| Db | max. | 66 | mm |
| ra | max. | 0.6 | mm |
| rb | max. | 0.3 | mm |
| dn | 54.2 | mm |
Calculation data
| Basic dynamic load rating | C | 9.75 | kN | |
| Basic static load rating | C0 | 6.55 | kN | |
| Fatigue load limit | Pu | 0.275 | kN | |
| Attainable speed for grease lubrication | 30000 | r/min | ||
| Attainable speed for oil-air lubrication | 47000 | r/min | ||
| Ball diameter | Dw | 6.35 | mm | |
| Number of balls | z | 21 | ||
| Reference grease quantity | Gref | 1.5 | cm³ | |
| Preload and stiffness (back-to-back, face-to-face) | ||||
| Preload class A | GA | 88 | N | |
| Static axial stiffness, preload class A | 94 | N/µm | ||
| Preload class B | GB | 265 | N | |
| Static axial stiffness, preload class B | 141 | N/µm | ||
| Preload class C | GC | 529 | N | |
| Static axial stiffness, preload class C | 185 | N/µm | ||
| Calculation factors | ||||
| Calculation factor | f | 1.09 | ||
| Calculation factor | f1 | 0.98 | ||
| Calculation factor | f2A | 1 | ||
| Calculation factor | f2B | 1.04 | ||
| Calculation factor | f2C | 1.08 | ||
| Calculation factor | fHC | 1.01 | ||
| Calculation factor | e | 0.68 | ||
| Calculation factor (single, tandem) | Y2 | 0.87 | ||
| Calculation factor (single, tandem) | Y0 | 0.38 | ||
| Calculation factor (single, tandem) | X2 | 0.41 | ||
| Calculation factor (back-to-back, face-to-face) | Y1 | 0.92 | ||
| Calculation factor (back-to-back, face-to-face) | Y2 | 1.41 | ||
| Calculation factor (back-to-back, face-to-face) | Y0 | 0.76 | ||
| Calculation factor (back-to-back, face-to-face) | X2 | 0.67 | ||
Mass
| Mass bearing | 0.12 | kg |
