Bearings, units and housings -- Super-precision bearings -- Angular contact ball bearings -- Angular contact ball bearings, super-precision -- SKF 71918 ACE/P4AH1
71918 ACE/P4AH1
Dimensions
| d | 90 | mm | |
| D | 125 | mm | |
| B | 18 | mm | |
| d1 | 101 | mm | |
| d2 | 97.9 | mm | |
| D1 | 114.22 | mm | |
| K | 0.5 | mm | |
| C1 | 5.48 | mm | |
| r1,2 | min. | 1.1 | mm |
| r3,4 | min. | 0.6 | mm |
| a | 35.9 | mm |

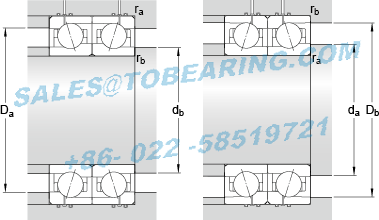

Abutment dimensions
| da | min. | 96 | mm |
| db | min. | 93.2 | mm |
| Da | max. | 119 | mm |
| Db | max. | 121.8 | mm |
| ra | max. | 1 | mm |
| rb | max. | 0.6 | mm |
| dn | 103.5 | mm |
Calculation data
| Basic dynamic load rating | C | 28.6 | kN | |
| Basic static load rating | C0 | 23.2 | kN | |
| Fatigue load limit | Pu | 0.915 | kN | |
| Attainable speed for grease lubrication | 13000 | r/min | ||
| Attainable speed for oil-air lubrication | 20000 | r/min | ||
| Ball diameter | Dw | 11.112 | mm | |
| Number of balls | z | 24 | ||
| Reference grease quantity | Gref | 7 | cm³ | |
| Preload and stiffness (back-to-back, face-to-face) | ||||
| Preload class A | GA | 260 | N | |
| Static axial stiffness, preload class A | 164 | N/µm | ||
| Preload class B | GB | 780 | N | |
| Static axial stiffness, preload class B | 247 | N/µm | ||
| Preload class C | GC | 1560 | N | |
| Static axial stiffness, preload class C | 324 | N/µm | ||
| Calculation factors | ||||
| Calculation factor | f | 1.19 | ||
| Calculation factor | f1 | 0.99 | ||
| Calculation factor | f2A | 1 | ||
| Calculation factor | f2B | 1.04 | ||
| Calculation factor | f2C | 1.07 | ||
| Calculation factor | fHC | 1 | ||
| Calculation factor | e | 0.68 | ||
| Calculation factor (single, tandem) | Y2 | 0.87 | ||
| Calculation factor (single, tandem) | Y0 | 0.38 | ||
| Calculation factor (single, tandem) | X2 | 0.41 | ||
| Calculation factor (back-to-back, face-to-face) | Y1 | 0.92 | ||
| Calculation factor (back-to-back, face-to-face) | Y2 | 1.41 | ||
| Calculation factor (back-to-back, face-to-face) | Y0 | 0.76 | ||
| Calculation factor (back-to-back, face-to-face) | X2 | 0.67 | ||
Mass
| Mass bearing | 0.54 | kg |
