Bearings, units and housings -- Ball bearings -- Angular contact ball bearings -- Single row angular contact ball bearings -- Angular contact ball bearings, single row SKF 7209 BE-2RZP

7209 BE-2RZP

Dimensions

d		45	mm
D		85	mm
B		19	mm
d₁	≈	60.85	mm
d₂	≈	52.68	mm
D₂	≈	71.8	mm
D₅	≈	79.9	mm
a		37	mm
r_1,2	min.	1.1	mm
r_3,4	min.	0.6	mm

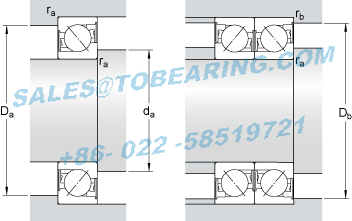

Abutment dimensions

d_a	min.	52	mm
d_a	max.	60	mm
D_a	max.	78	mm
D_b	max.	80.8	mm
r_a	max.	1	mm
r_b	max.	0.6	mm

Calculation data

Basic dynamic load rating	C	35.8	kN
Basic static load rating	C₀	26	kN
Fatigue load limit	P_u	1.12	kN
Reference speed		6700	r/min
Limiting speed		7500	r/min
Calculation factor	A	11.97
Calculation factor	k_r	0.095
Calculation factor	e	1.14
Single bearing or bearing pair arranged in tandem
Calculation factor	X	0.35
Calculation factor	Y₀	0.26
Calculation factor	Y₂	0.57
Bearing pair arranged back-to-back or face-to-face
Calculation factor	X	0.57
Calculation factor	Y₀	0.52
Calculation factor	Y₁	0.55
Calculation factor	Y₂	0.93

Lubrication

Standard grease

GXN

Mass

Mass bearing

0.52

Model Number: 7209 BE-2RZP
Inner Diameter：45mm Outer Diameter：85mm Width：19mm
Reference speed:7500 r/min Limiting speed:6700 r/min
Type：Bearings, units and housings Ball bearings Angular contact ball bearings Single row angular contact ball bearings
Details： Single row angular contact ball bearings Angular contact ball bearings, single row
Update date：2026-06-24
Application:test laboratory equipment and accessories,Display Devices,engine,packing equipment,Small air generators,equipment and,Digital Generator,industrial equipment,historical instruments,atomizer class,Cleaning equipment
Similar models:7209 BEP S7209 ACD/HCP4A 7209 CD/P4A 7209 BEGAY S7209 CD/HCP4A 7209 BEGAP S7209 ACD/P4A 7209 BECBY 7209 CD/HCP4A 7209 ACCBM
BEARING POWER International Trading Co.,Ltd. specialize in 7209BE-2RZP products，there is large inventory of SKF 7209 BE-2RZP Single row angular contact ball bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the 7209 BE-2RZP Which SKF 7209BE-2RZP is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
Model No. Inner Diameter Outer Diameter Width Type

65x97x7 HMS5 V
6x16x7 HMS5 RG
C 5020 V
FYNT 60 L
IR 22x28x20.5

Purchase the SKF 7209 BE-2RZP Angular contact ball bearings, single row Please fill in the following
