Bearings, units and housings -- Ball bearings -- Angular contact ball bearings -- Single row angular contact ball bearings -- Angular contact ball bearings, single row SKF 7314 ACCBM

7314 ACCBM

SKF Explorer

Dimensions

d		70	mm
D		150	mm
B		35	mm
d₁	≈	100.94	mm
d₂	≈	84.4	mm
D₁	≈	120.43	mm
a		43	mm
r_1,2	min.	2.1	mm
r_3,4	min.	1.1	mm

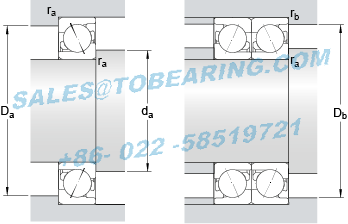

Abutment dimensions

d_a	min.	82	mm
D_a	max.	138	mm
D_b	max.	143	mm
r_a	max.	2	mm
r_b	max.	1	mm

Calculation data

Basic dynamic load rating	C	143	kN
Basic static load rating	C₀	110	kN
Fatigue load limit	P_u	4.4	kN
Reference speed		4000	r/min
Limiting speed		8500	r/min
Calculation factor	A	59.232
Calculation factor	k_r	0.1
Calculation factor	e	0.68
Single bearing or bearing pair arranged in tandem
Calculation factor	X	0.41
Calculation factor	Y₀	0.38
Calculation factor	Y₂	0.87
Bearing pair arranged back-to-back or face-to-face
Calculation factor	X	0.67
Calculation factor	Y₀	0.76
Calculation factor	Y₁	0.92
Calculation factor	Y₂	1.41

Mass

Mass bearing

2.65

Model Number: 7314 ACCBM
Inner Diameter：70mm Outer Diameter：150mm Width：35mm
Reference speed:8500 r/min Limiting speed:4000 r/min
Type：Bearings, units and housings Ball bearings Angular contact ball bearings Single row angular contact ball bearings
Details： Single row angular contact ball bearings Angular contact ball bearings, single row
Update date：2026-06-24
Application:Broadcasting System,glass,Storage Tool,shaft milling machine,transportation equipment,historical instruments,Insect Capture,Die,medical equipment,flow control valve,dynamic blood pressure
Similar models:7314 BECBJ 7314 BEGAY 7314 BECBM 7314 BEGAJ 7314 BEGAP 7314 BEGAM 7314 BECBPH 7314 BEGAF 7314 BECBP 7314 BEGBY
BEARING POWER International Trading Co.,Ltd. specialize in 7314ACCBM products，there is large inventory of SKF 7314 ACCBM Single row angular contact ball bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the 7314 ACCBM Which SKF 7314ACCBM is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
