SKF BC4B326261/HA1 Cylindrical roller bearings,SKF BC4B 326261/HA1 Roller bearings-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Roller bearings -- Cylindrical roller bearings -- Four-row cylindrical roller bearings -- Cylindrical roller bearings, four-row SKF BC4B 326261/HA1

BC4B 326261/HA1

Design
Design variant/feature  BC4.12/W33G

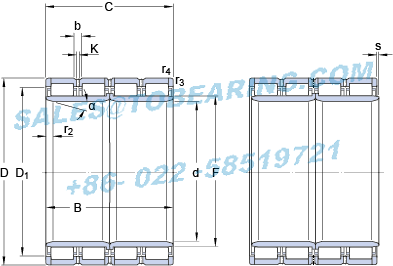

Dimensions
d 475mm
D 600mm
B 368mm
C 368mm
D1≈562.3mm
F 504mm
b 16.7mm
K 9mm
r1,2min.12mm
a 20°
r3,4min.3mm
Calculation data
Basic dynamic load ratingC 5500kN
Basic static load ratingC0 14600kN
Fatigue load limitPu 1270kN
Calculation factorkr 500
Mass
Mass bearing  235kg
Purchase the SKF BC4B 326261/HA1 Cylindrical roller bearings, four-row Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:
