23156-2CS5K/VT143 + OH 3156 HTL

SKF Explorer

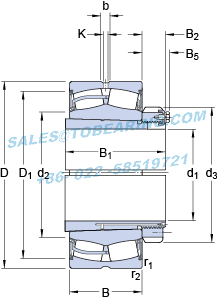

Dimensions
d1 260mm
D 460mm
B 146mm
d2≈314mm
d3 330mm
D1≈417mm
B1 195mm
B2 38mm
B5 50mm
b 16.7mm
K 9mm
r1,2min.5mm
Abutment dimensions
damax.314mm
dbmin.296mm
Damax.440mm
Bamin.12mm
ramax.4mm
Calculation data
Basic dynamic load ratingC 2788kN
Basic static load ratingC0 4250kN
Fatigue load limitPu 335kN
Limiting speed  300r/min
Calculation factore 0.28
Calculation factorY1 2.4
Calculation factorY2 3.6
Calculation factorY0 2.5
Mass
Mass bearing + sleeve  114kg
