SKF BD-C2216KV-H316 CARB toroidal roller bearings,SKF BD-C 2216 KV-H 316 Roller bearings-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Roller bearings -- CARB toroidal roller bearings -- CARB toroidal roller bearings -- SKF BD-C 2216 KV-H 316

C 2216 KV + H 316

SKF Explorer

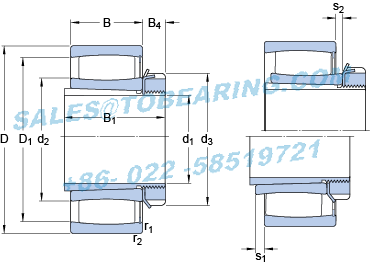

Dimensions
d1 70mm
D 140mm
B 33mm
B1 59mm
d2≈98.1mm
d3 105mm
D1≈125mm
B4 17mm
s1max.9.1mm
s2max.4.8mm
r1,2min.2mm
Abutment dimensions
damax.116mm
dbmin.85mm
Damax.129mm
Bamin.12mm
ramax.2mm
    Calculation data
    Basic dynamic load ratingC 255kN
    Basic static load ratingC0 305kN
    Fatigue load limitPu 34.5kN
    Limiting speed  2000r/min
    Misalignment factork1 0.104
    Operating clearance factork2 0.121
    Mass
    Mass bearing + sleeve  3kg
