Bearings, units and housings -- Roller bearings -- CARB toroidal roller bearings -- CARB toroidal roller bearings -- SKF BD-C 3030 KV-AHX 3030

C 3030 KV + AHX 3030

SKF Explorer

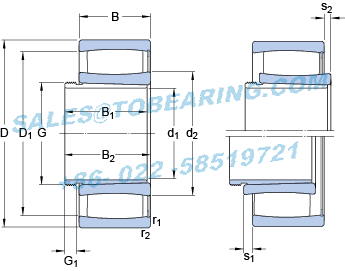

Dimensions

d₁		145	mm
D		225	mm
B		56	mm
B₁		72	mm
d₂	≈	174	mm
D₁	≈	204	mm
B₂		77	mm
G		M 160x3
G₁		15	mm
s₁	max.	14.1	mm
s₂	max.	7.3	mm
r_1,2	min.	2.1	mm

Abutment dimensions

d_a	min.	156	mm
d_a	max.	190	mm
D_a	max.	214	mm
r_a	max.	2	mm

Calculation data

Basic dynamic load rating	C	585	kN
Basic static load rating	C₀	960	kN
Fatigue load limit	P_u	93	kN
Limiting speed		1000	r/min
Misalignment factor	k₁	0.113
Operating clearance factor	k₂	0.108

Mass

Mass bearing + sleeve

8.9

Model Number: BD-C 3030 KV-AHX 3030
Inner Diameter：145mm Outer Diameter：225mm Width：56mm
Reference speed:1000 r/min Limiting speed:r/min
Type：Bearings, units and housings Roller bearings CARB toroidal roller bearings CARB toroidal roller bearings
Details： CARB toroidal roller bearings
Update date：2026-06-24
Application:noise reduction equipment,physical instruments,Industrial,pressure control valve,Small air generators,Pest Monitoring,molding machine,Control,test laboratory equipment and accessories,rubber products machinery and equipment,Laser Cutting
Similar models:GRA 3030 BD-23030-2CS5K/VT143-H 3030 E SNW 3030x5.3/16 SNW 3030x5.1/4 23030 CCK/W33 NN 3030 K/SPW33 NCF 3030 CV SAF 23030 KA x 5.1/8 30307 HA 3030
BEARING POWER International Trading Co.,Ltd. specialize in BD-C3030KV-AHX3030 products，there is large inventory of SKF BD-C 3030 KV-AHX 3030 CARB toroidal roller bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the BD-C 3030 KV-AHX 3030 Which SKF BD-C3030KV-AHX3030 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
