SKF BD-C3092KM-AOHX3092G CARB toroidal roller bearings,SKF BD-C 3092 KM-AOHX 3092 G Roller bearings-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Roller bearings -- CARB toroidal roller bearings -- CARB toroidal roller bearings -- SKF BD-C 3092 KM-AOHX 3092 G

C 3092 KM + AOHX 3092 G

SKF Explorer

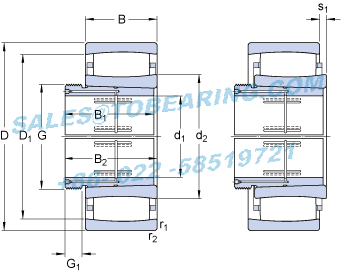

Dimensions
d1 440mm
D 680mm
B 163mm
B1 202mm
d2≈539mm
D1≈624mm
B2 213mm
G Tr 480x5
G1 37mm
s1max.33.5mm
r1,2min.6mm
Abutment dimensions
damin.473mm
damax.570mm
Damin.604mm
Damax.657mm
Camin.2.3mm
ramax.5mm
  • A negative value for Ca is theoretical.
Calculation data
Basic dynamic load ratingC 4000kN
Basic static load ratingC0 7500kN
Fatigue load limitPu 520kN
Reference speed  700r/min
Limiting speed  950r/min
Misalignment factork1 0.114
Operating clearance factork2 0.108
Mass
Mass bearing + sleeve  230kg
