SKF BD-C3184KM-OH3184H CARB toroidal roller bearings,SKF BD-C 3184 KM-OH 3184 H Roller bearings-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Roller bearings -- CARB toroidal roller bearings -- CARB toroidal roller bearings -- SKF BD-C 3184 KM-OH 3184 H

C 3184 KM + OH 3184 H

SKF Explorer

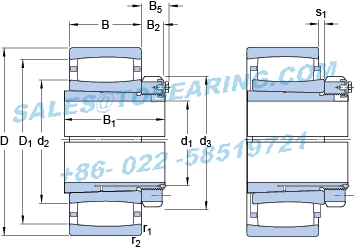

Dimensions
d1 400mm
D 700mm
B 224mm
B1 304mm
d2≈507mm
d3 540mm
D1≈618mm
B2 70mm
B5 90mm
s1max.34.8mm
r1,2min.6mm
Abutment dimensions
damax.544mm
dbmin.443mm
Damin.592mm
Damax.674mm
Bamin.16mm
Camin.3.8mm
ramax.5mm
  • A negative value for Ca is theoretical.
Calculation data
Basic dynamic load ratingC 6000kN
Basic static load ratingC0 10400kN
Fatigue load limitPu 720kN
Reference speed  670r/min
Limiting speed  900r/min
Misalignment factork1 0.113
Operating clearance factork2 0.098
Mass
Mass bearing + sleeve  395kg
