Bearings, units and housings -- Roller bearings -- CARB toroidal roller bearings -- CARB toroidal roller bearings -- SKF BD-C 3224 K-AHX 3224 G

C 3224 K + AHX 3224 G

SKF Explorer

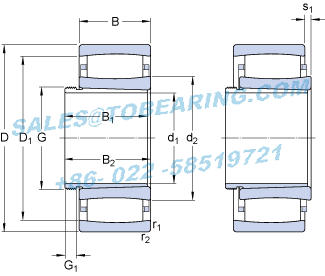

Dimensions

d₁		115	mm
D		215	mm
B		76	mm
B₁		90	mm
d₂	≈	149	mm
D₁	≈	190	mm
B₂		94	mm
G		M 130x2
G₁		13	mm
s₁	max.	17.1	mm
r_1,2	min.	2.1	mm

Abutment dimensions

d_a	min.	127	mm
d_a	max.	162	mm
D_a	min.	179	mm
D_a	max.	203	mm
C_a	min.	2.4	mm
r_a	max.	2	mm

A negative value for C_a is theoretical.

Calculation data

Basic dynamic load rating	C	750	kN
Basic static load rating	C₀	980	kN
Fatigue load limit	P_u	98	kN
Reference speed		2400	r/min
Limiting speed		3200	r/min
Misalignment factor	k₁	0.103
Operating clearance factor	k₂	0.108

Mass

Mass bearing + sleeve

Model Number: BD-C 3224 K-AHX 3224 G
Inner Diameter：115mm Outer Diameter：215mm Width：76mm
Reference speed:3200 r/min Limiting speed:2400 r/min
Type：Bearings, units and housings Roller bearings CARB toroidal roller bearings CARB toroidal roller bearings
Details： CARB toroidal roller bearings
Update date：2026-02-09
Application:tapered grinder,position switch,blood cell reagent,Plastic Equipment,Special Equipment,other accessories,flexible processing,mechanical and electrical,Spectrum Products,universal category,Cylinder Micro
Similar models:32244 HK 3224 23224-2CS5/VT143 332244 B BD-23224 CCK/W33-AHX 3224 G 332240 A PCZ 3224 E SAW 23224 BC4B 322497/HA4 BD-23224-2CS5K/VT143-H 2324 L
BEARING POWER International Trading Co.,Ltd. specialize in BD-C3224K-AHX3224G products，there is large inventory of SKF BD-C 3224 K-AHX 3224 G CARB toroidal roller bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the BD-C 3224 K-AHX 3224 G Which SKF BD-C3224K-AHX3224G is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
