SKF BD-C4044K30V-AOH24044 CARB toroidal roller bearings,SKF BD-C 4044 K30V-AOH 24044 Roller bearings-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Roller bearings -- CARB toroidal roller bearings -- CARB toroidal roller bearings -- SKF BD-C 4044 K30V-AOH 24044

C 4044 K30V + AOH 24044

SKF Explorer

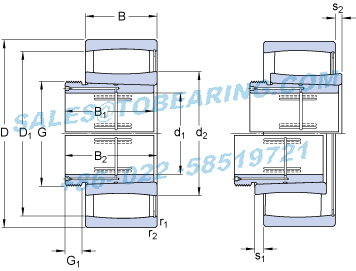

Dimensions
d1 200mm
D 340mm
B 118mm
B1 138mm
d2≈251mm
D1≈306mm
B2 152mm
G Tr 230x4
G1 20mm
s1max.20mm
s2max.10.1mm
r1,2min.3mm
Abutment dimensions
damin.228mm
damax.284mm
Damax.327mm
ramax.2.5mm
    Calculation data
    Basic dynamic load ratingC 1930kN
    Basic static load ratingC0 3250kN
    Fatigue load limitPu 280kN
    Limiting speed  200r/min
    Misalignment factork1 0.115
    Operating clearance factork2 0.095
    Mass
    Mass bearing + sleeve  48kg
