Bearings, units and housings -- Super-precision bearings -- Angular contact thrust ball bearings for screw drives -- Angular contact thrust ball bearings for screw drives, double direction, super-precision -- SKF BEAM 025075-2RS/PE

BEAM 025075-2RS/PE

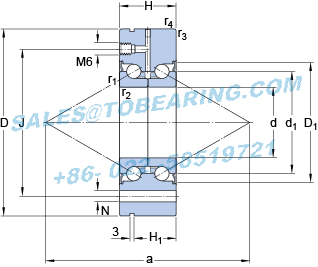

Dimensions

d		25	mm
D		75	mm
H		28	mm
d₁		40.5	mm
D₁		49	mm
H₁		19	mm
r_1,2	min.	0.3	mm
r_3,4	min.	0.8	mm
a		84	mm
J		58	mm
N		6.8	mm

Abutment dimensions

d_a	min.	32	mm
D_a	max.	49	mm
r_a	max.	0.6	mm

Calculation data

Basic dynamic load rating	C	27.6	kN
Basic static load rating	C₀	55	kN
Fatigue load limit	P_u	2.04	kN
Attainable speed		3400	r/min
Preload		1920	N
Frictional moment		0.4	N·m
Static axial stiffnes		770	N/µm

Mass

Mass bearing

0.72

Mounting information

Required attachment bolt size	M6
Number of attachment bolts	7
Pitch	45	°

Model Number: BEAM 025075-2RS/PE
Inner Diameter：25mm Outer Diameter：75mm Width：28mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Super-precision bearings Angular contact thrust ball bearings for screw drives Angular contact thrust ball bearings for screw drives, double direction, super-precision
Details： Angular contact thrust ball bearings for screw drives, double direction, super-precision
Update date：2026-06-25
Application:noise reduction equipment,hardware,Automobile,chemical raw materials and reagents,Industry,Machine tools,medical equipment,pump,enzyme,chamfer,other accessories
Similar models:BEAM 025075-2RZ/PE BEAM 025075-2RS BEAM 025075-2RS/PE
BEARING POWER International Trading Co.,Ltd. specialize in BEAM025075-2RS/PE products，there is large inventory of SKF BEAM 025075-2RS/PE Angular contact thrust ball bearings for screw drives, double direction, super-precision. We has been built up long-term cooperation with SKF company, could make a bulk order of the BEAM 025075-2RS/PE Which SKF BEAM025075-2RS/PE is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
