Bearings, units and housings -- Super-precision bearings -- Angular contact thrust ball bearings for screw drives -- Angular contact thrust ball bearings for screw drives, single direction, super-precision -- SKF BSD 2562 C

BSD 2562 C

Dimensions

d		25	mm
D		62	mm
H		15	mm
d₁		39.9	mm
d₂		46	mm
D₁		46.1	mm
D₂		52.91	mm
r_1,2	min.	1	mm
a		51	mm

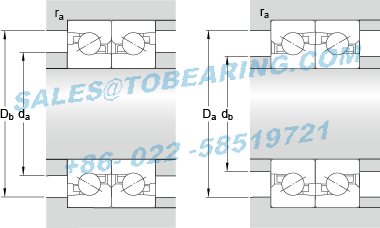

Abutment dimensions

d_a	min.	34	mm
d_b	min.	34	mm
D_a	max.	57	mm
D_b	max.	57	mm
r_a	max.	1	mm

Calculation data

Basic dynamic load rating	C		28.5	kN
Basic static load rating	C₀		71	kN
Fatigue load limit	P_u		2.65	kN
Attainable speed for grease lubrication			8000	r/min
Attainable speed for oil-air lubrication			9500	r/min
Preload class A			2150	N
Preload class B			4300	N
Frictional moment, preload class A			0.115	N·m
Frictional moment, preload class B			0.21	N·m
Maximum axial load carrying capacity	F_a	max.	22.6	kN
Reference grease quantity	G_ref		2	cm³

Mass

Mass bearing

0.24

Model Number: BSD 2562 C
Inner Diameter：25mm Outer Diameter：62mm Width：15mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Super-precision bearings Angular contact thrust ball bearings for screw drives Angular contact thrust ball bearings for screw drives, single direction, super-precision
Details： Angular contact thrust ball bearings for screw drives, single direction, super-precision
Update date：2026-06-25
Application:Machine Tool Accessories,rolling mill roll neck and slowdown device,test laboratory equipment and accessories,Plastic molding,relay,hydraulic pump,static control,lifting chain,food sterilization,labor insurance,sleep monitoring
Similar models:BSD 2562 C NUTR 2562 X PWTR 2562.2RS NUTR 2562 A
BEARING POWER International Trading Co.,Ltd. specialize in BSD2562C products，there is large inventory of SKF BSD 2562 C Angular contact thrust ball bearings for screw drives, single direction, super-precision. We has been built up long-term cooperation with SKF company, could make a bulk order of the BSD 2562 C Which SKF BSD2562C is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
