Coupling systems -- Flexible shaft couplings -- Elastic couplings, type ECCN -- -- SKF ECCN 030 R

ECCN 030 R

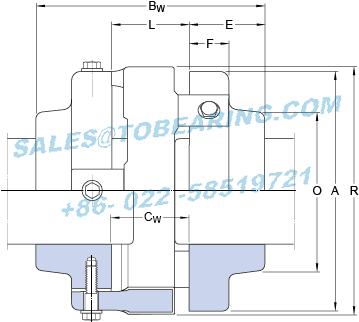

Dimensions

Shaft diameter
min.	14	mm
max.	39	mm
Other dimensions
A	111	mm
B_W	105	mm
C_W	38	mm
E	33	mm
F	15.9	mm
L	38	mm
O	62	mm
R	117	mm

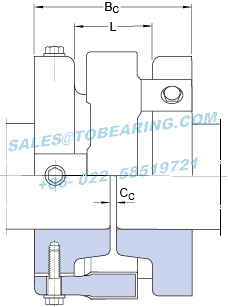

Both hubs reversed
B_C	70	mm
C_C	3	mm

Calculation data

Torque, continuous		max.	0.047	kN·m
Speed		max.	4100	r/min

Mass

Mass elastic coupling

Model Number: ECCN 030 R
Inner Diameter：14mm Outer Diameter：111mm Width：-mm
Reference speed:- Limiting speed:-
Type：Coupling systems Flexible shaft couplings Elastic couplings, type ECCN
Details：
Update date：2026-06-25
Application:test strip,rolling machine,E Beauty,Anesthetic Equipment,chromatography,ventilation heating equipment,forming machine,hanging clamp,security equipment,Vertical pull,extruder
Similar models:HCRE 030 R HCCE 030 R ECCN 030 R
BEARING POWER International Trading Co.,Ltd. specialize in ECCN030R products，there is large inventory of SKF ECCN 030 R . We has been built up long-term cooperation with SKF company, could make a bulk order of the ECCN 030 R Which SKF ECCN030R is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
