FBSA 205/QBC

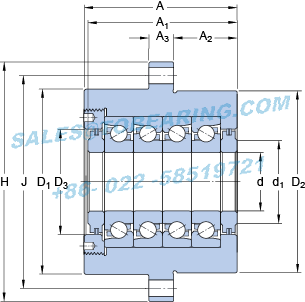

Dimensions
d 25mm
H 120mm
A 82mm
A1 80.26mm
A2 32mm
A3 15mm
d1 34mm
D1 88mm
D2 80mm
D3 40mm
Calculation data
Basic dynamic load ratingC 36.5kN
Basic static load ratingC0 104kN
Fatigue load limitPu 3.86kN
Attainable speed for preload class A  4500r/min
Attainable speed for preload class B  2250r/min
Preload class A  3160kN
Preload class B  6320kN
Frictional moment for preload class A  0.138N·m
Frictional moment for preload class B  0.24N·m
Static axial stiffnes for preload class A  1450N/µm
Static axial stiffnes for preload class B  1850N/µm
Mass
Mass cartridge unit  3.5kg
Mounting information
Through hole diameter for attachment boltsN 9.2mm
Pitch diameter of attachement bolt holesJ 102mm
Cartridge half diameter without flangeJ1 44mm
