FBSA 210 A/QBC

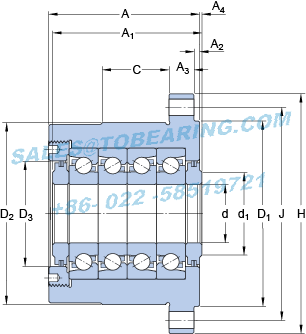

Dimensions
d 50mm
H 165mm
A 106mm
A1 106.26mm
A2 4mm
A3 24mm
A4≈1mm
C 35mm
d1 66mm
D1 128mm
D2 128mm
D3 76mm
Calculation data
Basic dynamic load ratingC 75.8kN
Basic static load ratingC0 292kN
Fatigue load limitPu 10.8kN
Attainable speed for preload class A  3000r/min
Attainable speed for preload class B  1500r/min
Preload class A  8200kN
Preload class B  16400kN
Frictional moment for preload class A  0.62N·m
Frictional moment for preload class B  1.36N·m
Static axial stiffnes for preload class A  2820N/µm
Static axial stiffnes for preload class B  3600N/µm
Mass
Mass cartridge unit  9.3kg
Mounting information
Through hole diameter for attachment boltsN 11.4mm
Pitch diameter of attachement bolt holesJ 146mm
Cartridge half diameter without flangeJ1 65.5mm
Threaded hole sizeG M10x1,5
