Bearings, units and housings -- Bearing housings -- Flanged housings, FNL series -- FNL series for bearings on an adapter sleeve -- SKF FNL 511 A

FNL 511 A

Appropriate products

Bearing (basic designation)			C 2211 K
Adapter sleeve			H 311 E
Locating ring			ZW 85x100
Contact seal			TFL 511

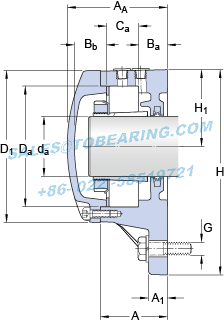

Dimensions

d_a		50	mm
C_a		27	mm
D_a		100	mm
A		56	mm
A₁		15	mm
A_A		84	mm
B_a		24	mm
B_b		23	mm
D		127	mm
H		172.5	mm
H₁		65	mm
J		170	mm
L		192	mm
N		14	mm
Dowel pins
J₁		77	mm
J₂		21	mm
J₃		57	mm
J₄		56	mm
J₅		21	mm
J₆		77	mm
N₄	max.	6	mm

Breaking loads, housing

P₁	110	kN
P₂	80	kN
P₃	110	kN

Mass

Mass housing

4.3

Mounting information

Cover bolt, size		3 x M 6x20
Cover bolt, rec. tightening torque		10	N·m
Appropriate attachment bolt, size	G	12	mm
Appropriate attachment bolt, rec. tightening torque		80	N·m
Initial grease fill, 20%		400	g
Initial grease fill, 40%		60	g

Model Number: FNL 511 A
Inner Diameter：50mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Flanged housings, FNL series FNL series for bearings on an adapter sleeve
Details： FNL series for bearings on an adapter sleeve
Update date：2026-06-25
Application:lifting equipment Hoisting hoist,suction nozzle,Film machine,vertical pull,Laser Cutting,Air,X-ray Equipment,special broaching machine,Food testing,sterilizers,gas turbine
Similar models:PBM 9511580 M1G1 LS 85110 51176 F 51116 51172 F PBMF 9511580 M1G1 51184 F SAF 1511-210 51101 51108
BEARING POWER International Trading Co.,Ltd. specialize in FNL511A products，there is large inventory of SKF FNL 511 A FNL series for bearings on an adapter sleeve. We has been built up long-term cooperation with SKF company, could make a bulk order of the FNL 511 A Which SKF FNL511A is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
