Bearings, units and housings -- Bearing housings -- Flanged housings, FNL series -- FNL series for bearings on an adapter sleeve -- SKF FNL 520 A

FNL 520 A

Appropriate products

Bearing (basic designation)			C 2220 K
Adapter sleeve			H 320 E
Locating ring			FRB 10/180
Contact seal			TFL 520

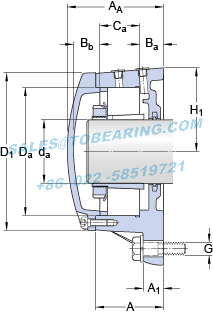

Dimensions

d_a		90	mm
C_a		56	mm
D_a		180	mm
A		91	mm
A₁		30	mm
A_A		130	mm
B_a		30	mm
B_b		31	mm
D		224	mm
H		250	mm
H₁		125	mm
J		198	mm
L		250	mm
N		22	mm
Dowel pins
J₅		112	mm
J₆		72	mm
N₄	max.	8	mm

Breaking loads, housing

P₁	180	kN
P₂	185	kN
P₃	565	kN

Mass

Mass housing

Mounting information

Cover bolt, size		4 x M 10x30
Cover bolt, rec. tightening torque		47	N·m
Appropriate attachment bolt, size	G	20	mm
Appropriate attachment bolt, rec. tightening torque		385	N·m
Initial grease fill, 20%		320	g
Initial grease fill, 40%		500	g

Model Number: FNL 520 A
Inner Diameter：90mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Flanged housings, FNL series FNL series for bearings on an adapter sleeve
Details： FNL series for bearings on an adapter sleeve
Update date：2026-06-25
Application:sample cup,electromagnetic clutch,Spectrum Products,centrifugal pump,Pneumatic Control Valves,hardware,chuck industry,casting embedding,wall materials,Power equipment,Hairbrush device
Similar models:HK 3520.2RS SAFS 22520-11 x 3.3/8 T SAFS 22520 x 3.1/2 SAW 23520 x 3.5/16 SAFS 22520 x 3.1/2 TLC SAFS 22520-11 SAFS 22520-11 x 3.1/2 SSAFS 22520 x 3.1/2 T SAFS 22520 x 3.3/8 SAW 23520 x 3.1/2 T
BEARING POWER International Trading Co.,Ltd. specialize in FNL520A products，there is large inventory of SKF FNL 520 A FNL series for bearings on an adapter sleeve. We has been built up long-term cooperation with SKF company, could make a bulk order of the FNL 520 A Which SKF FNL520A is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
