Bearings, units and housings -- Bearing housings -- Split pillow blocks, SAF and SAW series (inch dimensions) -- SAF and SAW pillow blocks with bearings on an adapter sleeve -- SKF FSAF 1617 x 3

FSAF 1617 x 3

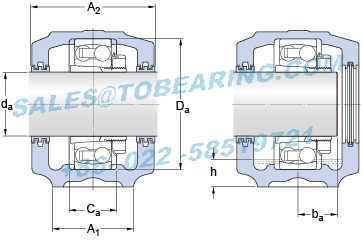

Dimensions

d_a		76.2	mm
D_a		180	mm
C_a		69.799	mm
A₁		111.125	mm
A₂		171.45	mm
b_a		52.388	mm
H		222.25	mm
H₁		114.3	mm
H₂		44.45	mm
J	min.	295.275	mm
J	max.	333.375	mm
J₁		60.325	mm
L		387.35	mm
N₁		22.225	mm
Threaded holes
R₁		66.675	mm
R₂		30.163	mm
R_G		3/8 NPT
P_G		1/4 NPT
Oil level
h		47.625	mm

Included products

Housing			FSAF 617
Bearing			1317 K
Adapter sleeve assembly			SNW 117x3
Stabilizing ring			2 x SR-1617
Labyrinth ring			2 x LOR 185
Check availability of bearings with other clearance classes (e.g. C3); Stabilizing ring(s) not included

Associated products

End plug (suffix Y)

EPR 10

Speed ratings

Bearing limiting speed

4800

r/min

Recommended safe loads

P_60°	104	kN
P_90°	62.3	kN
P_120°	39.1	kN
P_150°	35.6	kN
P_180°	42.9	kN
P_a	10.5	kN

Mass

Mass pillow block

25.5

Mounting information

Cap bolt		2 x 3/4-10 UNC
Cap bolt recommended tightening torque		515.2	N·m
Cap bolt, SAE grade		8
Appropriate attachment bolt size	G	0.75	in
Initial grease fill		365.71	g

Model Number: FSAF 1617 x 3
Inner Diameter：76.2mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Split pillow blocks, SAF and SAW series (inch dimensions) SAF and SAW pillow blocks with bearings on an adapter sleeve
Details： SAF and SAW pillow blocks with bearings on an adapter sleeve
Update date：2026-06-24
Application:decoration machinery,Air,relay,food / grain / food equipment,engine,hinge industry,Storage Tool,test equipment,engineering machinery,sleep monitoring,coal
Similar models:FSAF 1617 TLC FSAF 1617 T FSAF 1617 x 2.13/16 T SAF 1617 T FSAF 1617 x 2.13/16 SAF 1617 x 2.7/8 T FSAF 1617 x 2.7/8 TLC SAF 1617 FSAF 1617 x 2.13/16 TLC FSAF 1617 x 2.7/8
