Bearings, units and housings -- Bearing housings -- Split pillow blocks, SAF and SAW series (inch dimensions) -- SAF and SAW pillow blocks with bearings with a cylindrical bore -- SKF FSAF 22314 TLC

FSAF 22314 TLC

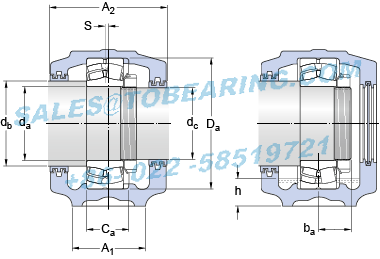

Dimensions

d_a		70	mm
d_b		82.55	mm
d_c		66.675	mm
D_a		150	mm
C_a		60.808	mm
A₁		88.9	mm
A₂		136.525	mm
S		4.763	mm
b_a		42.069	mm
H		187.325	mm
H₁		95.25	mm
H₂		33.337	mm
J	min.	263.525	mm
J	max.	295.275	mm
J₁		53.975	mm
L		330.2	mm
N₁		19.05	mm
Threaded holes
R₁		53.975	mm
R₂		22.225	mm
R_G		3/8 NPT
P_G		1/8 NPT
Oil level
h		37.306	mm

Included products

Housing			FSAF 314
Bearing			22314 E
Check availability of other clearance classes (e.g. C3)
Lock nut			N 14
Lock washer			W 14
Stabilizing ring			SR-17-14
Labyrinth ring (d_b shaft position)			LOR 64
PosiTrac Plus contact element (d_b shaft position)			B10724-64
Labyrinth ring (d_c shaft position)			LOR 43
PosiTrac Plus contact element (d_c shaft position)			B10724-44

Associated products

End plug (suffix Y)

EPR 8

Speed ratings

Max. speed for PosiTrac Plus seal

1450

r/min

Recommended safe loads

P_60°	92.5	kN
P_90°	55.6	kN
P_120°	34.7	kN
P_150°	30.7	kN
P_180°	37.8	kN
P_a	24.5	kN

Mass

Mass pillow block

19.4

Mounting information

Cap bolt		2 x 5/8-11 UNC
Cap bolt recommended tightening torque		298.3	N·m
Cap bolt, SAE grade		8
Appropriate attachment bolt size	G	0.625	in
Initial grease fill		110.56	g

Model Number: FSAF 22314 TLC
Inner Diameter：70mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Split pillow blocks, SAF and SAW series (inch dimensions) SAF and SAW pillow blocks with bearings with a cylindrical bore
Details： SAF and SAW pillow blocks with bearings with a cylindrical bore
