Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing square flanged units SKF FY 15/16 TF

FY 15/16 TF

Housing material

Cast iron

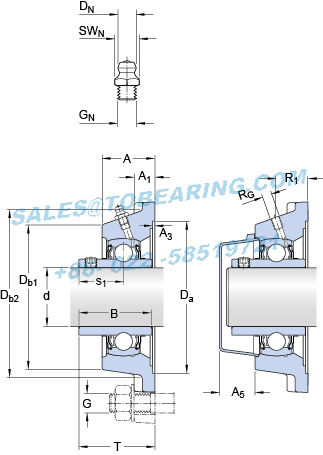

Dimensions

d		23.812	mm
A		30	mm
A₁		12	mm
A₃	H14	3.2	mm
A₅		20.5	mm
B		34.1	mm
D_a	H11	74.6	mm
D_b1		65	mm
D_b2		71	mm
J		70	mm
L		95	mm
N		11.5	mm
s₁		19.8	mm
T		38.8	mm
Threaded hole
R_G		1/4-28 UNF
R₁		21	mm
Grease fitting
D_N		6.5	mm
SW_N		7	mm
G_N		1/4-28 SAE-LT
Dowel pins
J₆		83	mm
J₇		19	mm
N₄		4	mm

Calculation data

Basic dynamic load rating	C	14	kN
Basic static load rating	C₀	7.8	kN
Fatigue load limit	P_u	0.335	kN
Limiting speed		7000	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

0.73

Mounting information

Thread grub screw	G₂	1/4-28 UNF
Hexagonal key size for grub screw	N	3.175	mm
Recommended tightening torque for grub screw		4	N·m
Recommended diameter for attachment bolts, mm	G	10	mm
Recommended diameter for attachment bolts, inch	G	0.375	in

Appertaining products

Housing			FY 505 M
Bearing			YAR 205-015-2F

Appropriate products

End cover

ECY 205

Model Number: FY 15/16 TF
Inner Diameter：23.812mm Outer Diameter：-mm Width：-mm
Reference speed:7000 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing square flanged units
Update date：2026-06-24
