Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing square flanged units SKF FY 2.3/16 FM

FY 2.3/16 FM

Housing material

Cast iron

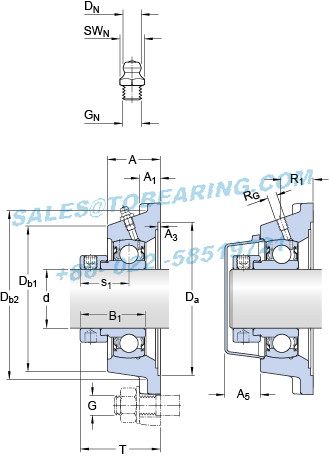

Dimensions

d		55.563	mm
A		47.5	mm
A₁		16	mm
A₃	H14	3.2	mm
A₅		37.5	mm
B₁		48.4	mm
D_a	H11	150.8	mm
D_b1		122	mm
D_b2		134	mm
J		130	mm
L		162	mm
N		18	mm
s₁		35.9	mm
T		66.9	mm
Threaded hole
R_G		1/4-28 UNF
R₁		32	mm
Grease fitting
D_N		6.5	mm
SW_N		7	mm
G_N		1/4-28 SAE-LT
Dowel pins
J₆		148	mm
J₇		45	mm
N₄		4	mm

Calculation data

Basic dynamic load rating	C	43.6	kN
Basic static load rating	C₀	29	kN
Fatigue load limit	P_u	1.25	kN
Limiting speed		3600	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

3.25

Mounting information

Thread grub screw	G₂	7/16-20 UNF
Hexagonal key size for grub screw	N	5.556	mm
Recommended tightening torque for grub screw		28.5	N·m
Recommended diameter for attachment bolts, mm	G	16	mm
Recommended diameter for attachment bolts, inch	G	0.625	in

Appertaining products

Housing			FY 511 M
Bearing			YET 211-203

Appropriate products

End cover

ECY 211

Model Number: FY 2.3/16 FM
Inner Diameter：55.563mm Outer Diameter：-mm Width：-mm
Reference speed:3600 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing square flanged units
Update date：2026-06-24
Application:food packaging,other accessories,medical equipment,Machine Tool Accessories,gas turbine,transistor fittings,Hydraulic Couplings,car steering pin,marine analysis,Doppler,ECG
Similar models:SY 1.15/16 TF/VA228 SNL 3164 PBMF 16018070 M1G1 SAFS 23024 KATLC-11 x 4.3/16 FY 1.5/16 TF 30316 SAF 1610 x 1.3/4 SY 13/16 TF FYRP 1 15/16 AOH 24164
BEARING POWER International Trading Co.,Ltd. specialize in FY2.3/16FM products，there is large inventory of SKF FY 2.3/16 FM Y-bearing flanged units. We has been built up long-term cooperation with SKF company, could make a bulk order of the FY 2.3/16 FM Which SKF FY2.3/16FM is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
