Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing 3-bolt bracket flanged units SKF FYAWK 25 LTA

FYAWK 25 LTA

Housing material

Composite for food and beverage

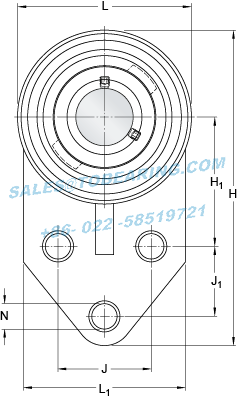

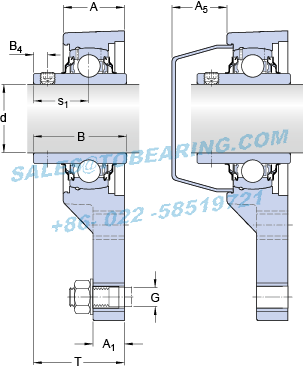

Dimensions

d	25	mm
A	34	mm
A₁	11.4	mm
A₅	22.2	mm
B	34.1	mm
B₄	5	mm
J	41.3	mm
J₁	28.6	mm
H	120.5	mm
H₁	46	mm
L	70	mm
L₁	63.5	mm
N	10.7	mm
s₁	19.8	mm
T	41.6	mm

Calculation data

Basic dynamic load rating	C	14	kN
Basic static load rating	C₀	7.8	kN
Fatigue load limit	P_u	0.335	kN
Limiting speed with shaft tolerance h6		4300	r/min

Mass

Mass bearing unit

0.31

Mounting information

Thread grub screw	G₂	M6x0.75
Hexagonal key size for grub screw	N	3	mm
Recommended tightening torque for grub screw		4	N·m
Recommended diameter for attachment bolts, mm	G	10	mm
Recommended diameter for attachment bolts, inch	G	0.375	in

Appertaining products

Housing			FYAWK 505 L
Bearing			YAR 205-2RF/VE495

Appropriate products

End cover

ECL 205

Model Number: FYAWK 25 LTA
Inner Diameter：25mm Outer Diameter：-mm Width：-mm
Reference speed:4300 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing 3-bolt bracket flanged units
Update date：2026-06-24
Application:medical equipment,Other Machine Tools,welding equipment,thread processing machine,packaging machinery,industry test,packing equipment,test equipment,municipal machinery,tire industry,Laser Devices
Similar models:SAF 22522 x 3.7/8 T IR 20x25x38.5 IR 25x30x26.5 HK 5025 PWM 200220250 SAFS 22530 x 5.3/8 SAF 22534 x 5.13/16 SSAFS 22534 x 6 SSAFS 22536 x 6.3/8 TLC AS 2542
BEARING POWER International Trading Co.,Ltd. specialize in FYAWK25LTA products，there is large inventory of SKF FYAWK 25 LTA Y-bearing flanged units. We has been built up long-term cooperation with SKF company, could make a bulk order of the FYAWK 25 LTA Which SKF FYAWK25LTA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
