Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing 3-bolt bracket flanged units SKF FYAWK 35 LTHR

FYAWK 35 LTHR

Housing material

Composite for food and beverage

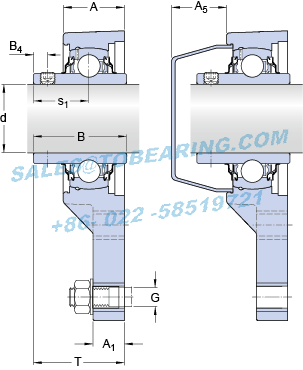

Dimensions

d	35	mm
A	36.5	mm
A₁	16.1	mm
A₅	28.6	mm
B	42.9	mm
B₄	6	mm
J	50.8	mm
J₁	31.8	mm
H	157	mm
H₁	60.3	mm
L	95	mm
L₁	89	mm
N	13.1	mm
s₁	25.4	mm
T	47.1	mm

Calculation data

Basic dynamic load rating	C	21.6	kN
Basic static load rating	C₀	15.3	kN
Fatigue load limit	P_u	0.655	kN
Limiting speed with shaft tolerance h6		3200	r/min

Mass

Mass bearing unit

0.71

Mounting information

Thread grub screw	G₂	M6x0.75
Hexagonal key size for grub screw	N	3	mm
Recommended tightening torque for grub screw		4	N·m
Recommended diameter for attachment bolts, mm	G	12	mm
Recommended diameter for attachment bolts, inch	G	0.5	in

Appertaining products

Housing			FYAWK 507 L
Bearing			YAR 207-2RFGR/HV

Appropriate products

End cover

ECL 207

Model Number: FYAWK 35 LTHR
Inner Diameter：35mm Outer Diameter：-mm Width：-mm
Reference speed:3200 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing 3-bolt bracket flanged units
