Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing square flanged units SKF FYK 30 LD

FYK 30 LD

Housing material

Composite

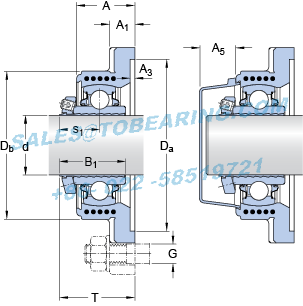

Dimensions

d		30	mm
A		33	mm
A₁		15.3	mm
A₃	H14	3.2	mm
A₅		20	mm
B₁		37	mm
D_a	H11	93.7	mm
D_b		78	mm
J		82.5	mm
L		108	mm
N		12.3	mm
s₁		23	mm
T		43	mm

Values for B₁ and s₁ before the grub screw is tightened (sleeve and inner ring bore at starting position).

Calculation data

Basic dynamic load rating	C	19.5	kN
Basic static load rating	C₀	11.2	kN
Fatigue load limit	P_u	0.475	kN
Limiting speed		1200	r/min

Mass

Mass bearing unit

0.5

Mounting information

Thread grub screw	G₂	M5
Hexagonal key size for grub screw	N	2.5	mm
Recommended tightening torque for grub screw		4.2	N·m
Recommended diameter for attachment bolts, mm	G	10	mm
Recommended diameter for attachment bolts, inch	G	0.375	in
Appropriate SKF mounting kit		626830

Appertaining products

Housing			FYK 506
Bearing			YSPAG 206

Appropriate products

End cover

ECY 206
