Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing square flanged units SKF FYK 40 TF

FYK 40 TF

Housing material

Composite

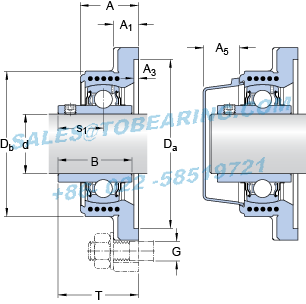

Dimensions

d		40	mm
A		39	mm
A₁		17	mm
A₃	H14	3.2	mm
A₅		23.5	mm
B		49.2	mm
D_a	H11	115.9	mm
D_b		98	mm
J		101.5	mm
L		130	mm
N		14.8	mm
s₁		30.2	mm
T		54.2	mm

Calculation data

Basic dynamic load rating	C	30.7	kN
Basic static load rating	C₀	19	kN
Fatigue load limit	P_u	0.8	kN
Limiting speed		4800	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

0.84

Mounting information

Thread grub screw	G₂	M8x1
Hexagonal key size for grub screw	N	4	mm
Recommended tightening torque for grub screw		6.5	N·m
Recommended diameter for attachment bolts, mm	G	12	mm
Recommended diameter for attachment bolts, inch	G	0.5	in

Appertaining products

Housing			FYK 508
Bearing			YAR 208-2F

Appropriate products

End cover

ECY 208

Model Number: FYK 40 TF
Inner Diameter：40mm Outer Diameter：-mm Width：-mm
Reference speed:4800 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing square flanged units
Update date：2026-06-25
Application:industrial equipment,agrochemical,dye pigments,chamfer,plastic rolling,Medical printer,Power equipment,Die,Special Equipment,pump accessories,Dental Equipment
Similar models:C 4030 V FYK 40 TD BD-240/710 ECAK30/W33-AOH 240/710 G SAA 40 ES-2RS PWM 303640 HJ 240 EC FY 40 TF/VA201 BT4B 334023 E1/C675 SYNT 40 FTS SSAFS 22240 TLC
BEARING POWER International Trading Co.,Ltd. specialize in FYK40TF products，there is large inventory of SKF FYK 40 TF Y-bearing flanged units. We has been built up long-term cooperation with SKF company, could make a bulk order of the FYK 40 TF Which SKF FYK40TF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
