Bearings, units and housings -- Bearing units -- Roller bearing units -- Metric roller bearing units, SYNT and FYNT series (SKF ConCentra) -- Roller bearing flanged units, for metric shafts SKF FYNT 40 F

FYNT 40 F

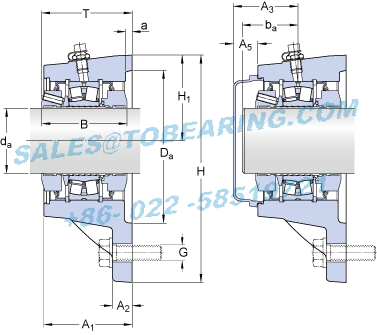

Dimensions

d_a		40	mm
A₁		66	mm
A₂		12	mm
T	max.	72.5	mm
B		65	mm
H		160	mm
H₁		60	mm
J		160	mm
L		179	mm
D_a		100	mm
N		14	mm
a		4	mm
Shaft end
A₃		51	mm
A₅		23.5	mm
b_a	min.	34	mm
b_a	max.	43	mm

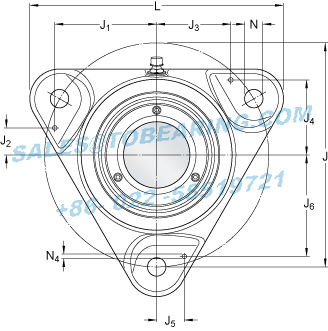

Dowel pins
J₁		71	mm
J₂		20	mm
J₃		53	mm
J₄		43	mm
J₅		18	mm
J₆		72	mm
N₄	max.	6	mm

Calculation data

Basic dynamic load rating	C	96.5	kN
Basic static load rating	C₀	90	kN
Fatigue load limit	P_u	9.8	kN
Limiting speed		3800	r/min
Calculation factor	e	0.28
Calculation factor	Y₁	2.4
Calculation factor	Y₂	3.6
Bearing mean diameter	d_m	60	mm
Basic bearing designation		22208 E

Load carrying ability

Breaking loads
P₁	90	kN
P₂	60	kN
P₃	100	kN
Axial holding power
P_a	15	kN

Mass

Mass bearing unit

3.6

Mounting information

Attachment bolt diameter	G	12	mm
Tightening torque for attachment bolts		80	N·m
Grub screws		3 x M 6
Tightening torque for grub screws		8	N·m
Grease quantity for relubrication		4	g

Appropriate products

End cover

ECY 208

Model Number: FYNT 40 F
Inner Diameter：40mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing units Roller bearing units Metric roller bearing units, SYNT and FYNT series (SKF ConCentra)
Details： Metric roller bearing units, SYNT and FYNT series (SKF ConCentra) Roller bearing flanged units, for metric shafts
