Bearings, units and housings -- Bearing units -- Roller bearing units -- Metric roller bearing units, SYNT and FYNT series (SKF ConCentra) -- Roller bearing flanged units, for metric shafts SKF FYNT 50 L
FYNT 50 L

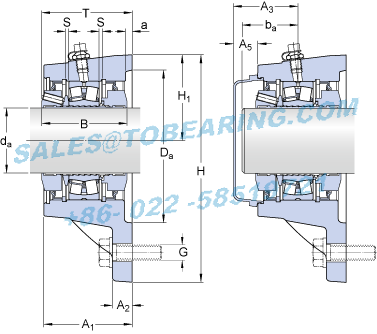

Dimensions
| da | 50 | mm | |
| A1 | 70 | mm | |
| A2 | 15 | mm | |
| T | max. | 72.7 | mm |
| B | 65 | mm | |
| H | 172.5 | mm | |
| H1 | 65 | mm | |
| J | 170 | mm | |
| L | 192 | mm | |
| Da | 105 | mm | |
| N | 14 | mm | |
| a | 5 | mm | |
| S | 2.5 | mm | |
| Shaft end | |||
| A3 | 62 | mm | |
| A5 | 29.5 | mm | |
| ba | min. | 34 | mm |
| ba | max. | 55 | mm |
| Dowel pins | |||
| J1 | 77 | mm | |
| J2 | 21 | mm | |
| J3 | 57 | mm | |
| J4 | 49 | mm | |
| J5 | 21 | mm | |
| J6 | 77 | mm | |
| N4 | max. | 6 | mm |
Calculation data
| Basic dynamic load rating | C | 104 | kN | |
| Basic static load rating | C0 | 108 | kN | |
| Fatigue load limit | Pu | 11.8 | kN | |
| Limiting speed | 3300 | r/min | ||
| Calculation factor | e | 0.24 | ||
| Calculation factor | Y1 | 2.8 | ||
| Calculation factor | Y2 | 4.2 | ||
| Bearing mean diameter | dm | 70 | mm | |
| Basic bearing designation | ||||
Load carrying ability
| Breaking loads | |||
| P1 | 110 | kN | |
| P2 | 80 | kN | |
| P3 | 110 | kN | |
| Axial holding power | |||
| Pa | 15 | kN | |
Mass
| Mass bearing unit | 4.5 | kg |
Mounting information
| Attachment bolt diameter | G | 12 | mm | |
| Tightening torque for attachment bolts | 80 | N·m | ||
| Grub screws |
3 x M 6
|
|||
| Tightening torque for grub screws | 8 | N·m | ||
| Grease quantity for relubrication | 4 | g | ||
Appropriate products
| End cover | ||||
