Bearings, units and housings -- Bearing units -- Roller bearing units -- Metric roller bearing units, SYNT and FYNT series (SKF ConCentra) -- Roller bearing flanged units, for metric shafts SKF FYNT 75 F

FYNT 75 F

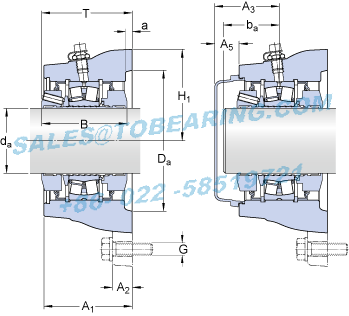

Dimensions

d_a		75	mm
A₁		82	mm
A₂		25	mm
T	max.	81.3	mm
B		72	mm
H		210	mm
H₁		105	mm
J		170	mm
L		210	mm
D_a		170	mm
N		19	mm
a		6	mm
Shaft end
A₃		80	mm
A₅		38.5	mm
b_a	min.	38	mm
b_a	max.	70	mm
Dowel pins
J₅		93	mm
J₆		63	mm
N₄	max.	8	mm

Calculation data

Basic dynamic load rating	C	212	kN
Basic static load rating	C₀	240	kN
Fatigue load limit	P_u	26.5	kN
Limiting speed		2500	r/min
Calculation factor	e	0.22
Calculation factor	Y₁	3
Calculation factor	Y₂	4.6
Bearing mean diameter	d_m	102.5	mm
Basic bearing designation		22215 E

Load carrying ability

Breaking loads
P₁	160	kN
P₂	155	kN
P₃	415	kN
Axial holding power
P_a	25	kN

Mass

Mass bearing unit

Mounting information

Attachment bolt diameter	G	16	mm
Tightening torque for attachment bolts		200	N·m
Grub screws		5 x M 6
Tightening torque for grub screws		8	N·m
Grease quantity for relubrication		8	g

Appropriate products

End cover

ECY 215

Model Number: FYNT 75 F
Inner Diameter：75mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing units Roller bearing units Metric roller bearing units, SYNT and FYNT series (SKF ConCentra)
Details： Metric roller bearing units, SYNT and FYNT series (SKF ConCentra) Roller bearing flanged units, for metric shafts
