SKF FYR315/16-18 Roller bearing units,SKF FYR 3 15/16-18 Bearing units-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Bearing units -- Roller bearing units -- Inch roller bearing units, SYE, SYR, FYE and FYR series -- Roller bearing round flanged units, for inch shafts SKF FYR 3 15/16-18

FYR 3 15/16-18

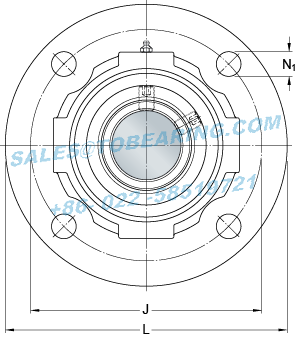

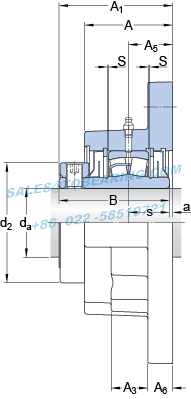

Dimensions
da 100.013mm
d2 152.4mm
A 88.9mm
A1 122.237mm
A3 36.513mm
A5 46.831mm
A6 28.575mm
B 116.681mm
a 6.35mm
J 273.05mm
L 320.278mm
N1 23.813mm
s 41.275mm
S 0.794mm
Calculation data
Basic dynamic load ratingC 311kN
Limiting speed  2200r/min
Mass
Mass bearing unit  24kg
Mounting information
Attachment bolt diameterG 22.225mm
