SKF FYRP13/4-18 Roller bearing units,SKF FYRP 1 3/4-18 Bearing units-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Bearing units -- Roller bearing units -- Inch roller bearing units, SYE, SYR, FYE and FYR series -- Roller bearing piloted flanged units, for inch shafts SKF FYRP 1 3/4-18

FYRP 1 3/4-18

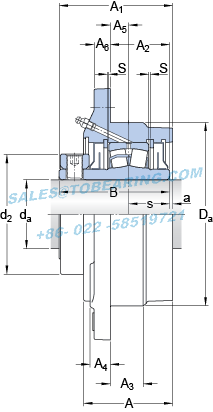

Dimensions
da 44.45mm
d2 68.659mm
Da 107.95mm
A 63.5mm
A1 79.375mm
A2 40.481mm
A3 22.225mm
A4 15.875mm
A5 15.875mm
A6 12.7mm
B 73.025mm
a 7.144mm
J 130.175mm
L 155.575mm
N1 12.7mm
s 25.4mm
S 0.794mm
Calculation data
Basic dynamic load ratingC 77kN
Limiting speed  5300r/min
Mass
Mass bearing unit  3.49kg
Mounting information
Attachment bolt diameterG 11.113mm
