SKF FYRP31/2 Roller bearing units,SKF FYRP 3 1/2 Bearing units-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Bearing units -- Roller bearing units -- Inch roller bearing units, SYE, SYR, FYE and FYR series -- Roller bearing piloted flanged units, for inch shafts SKF FYRP 3 1/2

FYRP 3 1/2

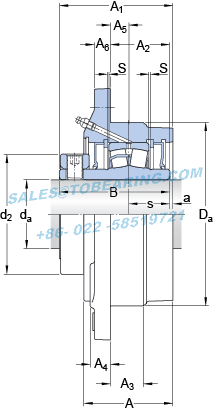

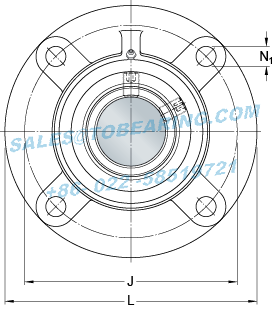

Dimensions
da 88.9mm
d2 130.175mm
Da 187.325mm
A 80.963mm
A1 106.362mm
A2 49.212mm
A3 31.75mm
A4 26.988mm
A5 13.494mm
A6 22.225mm
B 102.394mm
a 4.763mm
J 219.075mm
L 260.35mm
N1 20.637mm
s 36.513mm
S 0.794mm
Calculation data
Basic dynamic load ratingC 253kN
Limiting speed  2300r/min
Mass
Mass bearing unit  13.2kg
Mounting information
Attachment bolt diameterG 19.05mm
