Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing oval flanged units SKF FYTB 1/2 FM

FYTB 1/2 FM

Housing material

Cast iron

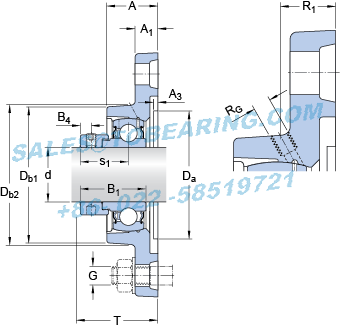

Dimensions

d		12.7	mm
A		26	mm
A₁		11	mm
A₃	H14	3.2	mm
B₁		28.6	mm
B₄		4.75	mm
D_a	H11	50.8	mm
D_b1		50	mm
D_b2		57	mm
J		76.5	mm
H		98.5	mm
L		57	mm
N		11.5	mm
s₁		22.1	mm
T		39.1	mm
Threaded hole
R_G		1/4-28 UNF
R₁		19	mm
R_a		45	°
Grease fitting
D_N		6.5	mm
SW_N		7	mm
G_N		1/4-28 SAE-LT
Dowel pins
J₆		61.5	mm
J₇		11	mm
N₄		2	mm

Calculation data

Basic dynamic load rating	C	9.56	kN
Basic static load rating	C₀	4.75	kN
Fatigue load limit	P_u	0.2	kN
Limiting speed		9500	r/min

(with shaft tolerance h6)

Mounting information

Thread grub screw	G₂	1/4-28 UNF
Hexagonal key size for grub screw	N	3.175	mm
Recommended tightening torque for grub screw		4	N·m
Recommended diameter for attachment bolts, mm	G	10	mm
Recommended diameter for attachment bolts, inch	G	0.375	in

Appertaining products

Housing			FYTB 503 M
Bearing			YET 203-008
