Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing oval flanged units SKF FYTB 1.15/16 LDW

FYTB 1.15/16 LDW

Housing material

Cast iron

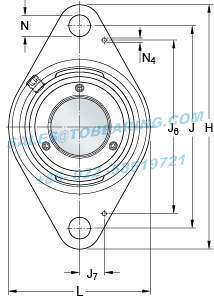

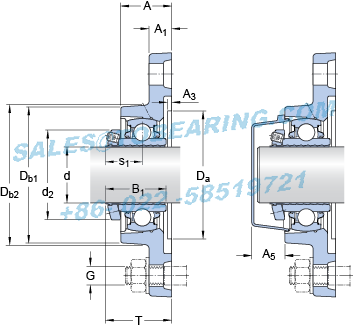

Dimensions

d		49.212	mm
d₂		72	mm
A		43	mm
A₁		15	mm
A₃	H14	3.2	mm
A₅		29.5	mm
B₁		46	mm
D_a	H11	101.6	mm
D_b1		107	mm
D_b2		116	mm
J		157	mm
H		189	mm
L		116	mm
N		18	mm
s₁		27.5	mm
T		55.5	mm
Values for B₁ and s₁ before the grub screw is tightened (sleeve and inner ring bore at starting position).
Threaded hole
R_G		1/4-28 UNF
R₁		28.5	mm
R_a		45	°
Dowel pins
J₆		127	mm
J₇		20	mm
N₄		2	mm

Calculation data

Basic dynamic load rating	C	35.1	kN
Basic static load rating	C₀	23.2	kN
Fatigue load limit	P_u	0.98	kN
Limiting speed		800	r/min

Mass

Mass bearing unit

2.05

Mounting information

Thread grub screw	G₂	M6
Hexagonal key size for grub screw	N	3	mm
Recommended tightening torque for grub screw		7.4	N·m
Recommended diameter for attachment bolts, mm	G	16	mm
Recommended diameter for attachment bolts, inch	G	0.625	in
Appropriate SKF mounting kit		626830

Appertaining products

Housing			FYTB 510 M/VZ033
Bearing			YSPAG 210-115

Appropriate products

End cover

ECY 210

Model Number: FYTB 1.15/16 LDW
Inner Diameter：49.2125mm Outer Diameter：-mm Width：-mm
Reference speed:800 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing oval flanged units
Update date：2026-06-24
Application:construction machinery and equipment,boring bar boring bar,electric pump,wire industry,Broadcasting System,equipment,hydraulic pressure gauge,Industrial Electromechanical,ventilation fans,Handling machinery and various industrial machinery,Spectral Products
