Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing oval flanged units SKF FYTB 1.5/8 TF

FYTB 1.5/8 TF

Housing material  Cast iron

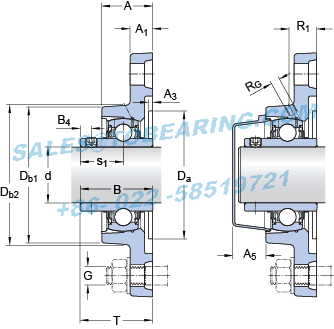

Dimensions
d 41.275mm
A 39mm
A1 14mm
A3H143.2mm
A5 26.5mm
B 49.2mm
B4 8mm
DaH1198.4mm
Db1 102mm
Db2 111mm
J 148.5mm
H 178.5mm
L 111mm
N 16mm
s1 30.2mm
T 54.2mm
Threaded hole
RG 1/4-28 UNF
R1 24.5mm
Ra 45°
Grease fitting
DN 6.5mm
SWN 7mm
GN 1/4-28 SAE-LT
Dowel pins
J6 120.5mm
J7 18mm
N4 2mm
Calculation data
Basic dynamic load ratingC 33.2kN
Basic static load ratingC0 21.6kN
Fatigue load limitPu 0.915kN
Limiting speed  4300r/min

(with shaft tolerance h6)

Mounting information
Thread grub screwG2 5/16-24 UNF
Hexagonal key size for grub screwN 3.969mm
Recommended tightening torque for grub screw  6.5N·m
Recommended diameter for attachment bolts, mmG 14mm
Recommended diameter for attachment bolts, inchG 0.5625in
