Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing oval flanged units SKF FYTB 45 LF

FYTB 45 LF

Housing material

Cast iron

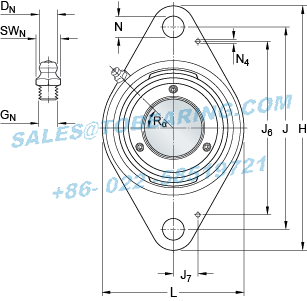

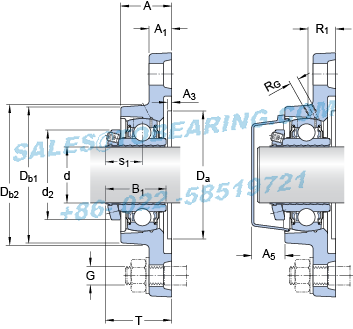

Dimensions

d		45	mm
d₂		67	mm
A		39	mm
A₁		14	mm
A₃	H14	3.2	mm
A₅		23	mm
B₁		44	mm
D_a	H11	98.4	mm
D_b1		102	mm
D_b2		111	mm
J		148.5	mm
H		178.5	mm
L		111	mm
N		16	mm
s₁		26.5	mm
T		50.5	mm
Values for B₁ and s₁ before the grub screw is tightened (sleeve and inner ring bore at starting position).
Threaded hole
R_G		1/4-28 UNF
R₁		24.5	mm
R_a		45	°
Grease fitting
D_N		6.5	mm
SW_N		7	mm
G_N		1/4-28 SAE-LT
Dowel pins
J₆		120.5	mm
J₇		18	mm
N₄		2	mm

Calculation data

Basic dynamic load rating	C	33.2	kN
Basic static load rating	C₀	21.6	kN
Fatigue load limit	P_u	0.915	kN
Limiting speed		4300	r/min

Mass

Mass bearing unit

1.75

Mounting information

Thread grub screw	G₂	M6
Hexagonal key size for grub screw	N	3	mm
Recommended tightening torque for grub screw		7.4	N·m
Recommended diameter for attachment bolts, mm	G	14	mm
Recommended diameter for attachment bolts, inch	G	0.5625	in
Appropriate SKF mounting kit		626830

Appertaining products

Housing			FYTB 509 M
Bearing			YSP 209 SB-2F

Appropriate products

End cover

ECY 209

Model Number: FYTB 45 LF
Inner Diameter：45mm Outer Diameter：-mm Width：-mm
Reference speed:4300 r/min Limiting speed:-
