Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing oval flanged units SKF FYTB 5/8 RM

FYTB 5/8 RM

Housing material

Cast iron

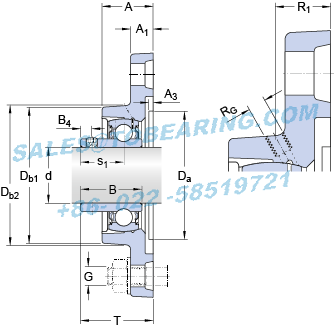

Dimensions

d		15.875	mm
A		26	mm
A₁		11	mm
A₃	H14	3.2	mm
B		22.1	mm
B₄		4	mm
D_a	H11	50.8	mm
D_b1		50	mm
D_b2		57	mm
J		76.5	mm
H		98.5	mm
L		57	mm
N		11.5	mm
s₁		15.9	mm
T		32.9	mm
Threaded hole
R_G		1/4-28 UNF
R₁		19	mm
R_a		45	°
Grease fitting
D_N		6.5	mm
SW_N		7	mm
G_N		1/4-28 SAE-LT
Dowel pins
J₆		61.5	mm
J₇		11	mm
N₄		2	mm

Calculation data

Basic dynamic load rating	C	9.56	kN
Basic static load rating	C₀	4.75	kN
Fatigue load limit	P_u	0.2	kN
Limiting speed		9500	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

0.33

Mounting information

Thread grub screw	G₂	#10-32 UNF
Hexagonal key size for grub screw	N	2.381	mm
Recommended tightening torque for grub screw		4	N·m
Recommended diameter for attachment bolts, mm	G	10	mm
Recommended diameter for attachment bolts, inch	G	0.375	in

Appertaining products

Housing			FYTB 503 M
Bearing			YAT 203-010

Model Number: FYTB 5/8 RM
Inner Diameter：15.875mm Outer Diameter：-mm Width：-mm
Reference speed:9500 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing oval flanged units
Update date：2026-09-07
Application:container finishing,Energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving,Leather Products,Display Devices,Laser Measurements,Broadcasting System,agricultural testing and analysis equipment and related,security equipment,Dental Drill etc,CNC,flexible processing
Similar models:629-RSH 618/800 MA SNL 617 TURU FY 55 FM 305805 C-2Z SAF 22628 x 4.13/16 TLC 7221 BEP SAFS 22524 x 4.1/4 C 3072 KM 51256 M
BEARING POWER International Trading Co.,Ltd. specialize in FYTB5/8RM products，there is large inventory of SKF FYTB 5/8 RM Y-bearing flanged units. We has been built up long-term cooperation with SKF company, could make a bulk order of the FYTB 5/8 RM Which SKF FYTB5/8RM is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
