Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing oval flanged units SKF FYTBK 20 TF

FYTBK 20 TF

Housing material

Composite

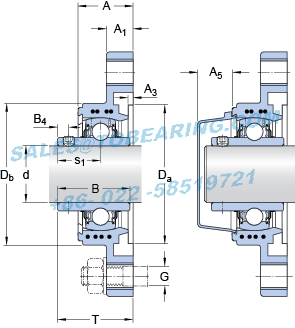

Dimensions

d		20	mm
A		29.5	mm
A₁		15	mm
A₃	H14	3.2	mm
A₅		18.5	mm
B		31	mm
B₄		4.5	mm
D_a	H11	50.8	mm
D_b		59	mm
J		90	mm
H		112	mm
L		60.5	mm
N		12.3	mm
s₁		18.3	mm
T		37.3	mm

Calculation data

Basic dynamic load rating	C	12.7	kN
Basic static load rating	C₀	6.55	kN
Fatigue load limit	P_u	0.28	kN
Limiting speed		8500	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

0.22

Mounting information

Thread grub screw	G₂	M6x0.75
Hexagonal key size for grub screw	N	3	mm
Recommended tightening torque for grub screw		4	N·m
Recommended diameter for attachment bolts, mm	G	10	mm
Recommended diameter for attachment bolts, inch	G	0.375	in

Appertaining products

Housing			FYTBK 504
Bearing			YAR 204-2F

Appropriate products

End cover

ECY 204

Model Number: FYTBK 20 TF
Inner Diameter：20mm Outer Diameter：-mm Width：-mm
Reference speed:8500 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing oval flanged units
