Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing oval flanged units SKF FYTBK 30 LF

FYTBK 30 LF

Housing material

Composite

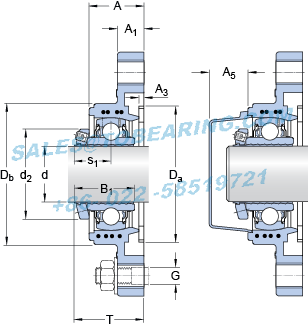

Dimensions

d		30	mm
d₂		48	mm
A		33	mm
A₁		15	mm
A₃	H14	3.2	mm
A₅		20	mm
B₁		37	mm
D_a	H11	76.2	mm
D_b		78	mm
J		116.5	mm
H		142.5	mm
L		83	mm
N		12.3	mm
s₁		23	mm
T		43	mm

Values for B₁ and s₁ before the grub screw is tightened (sleeve and inner ring bore at starting position).

Calculation data

Basic dynamic load rating	C	19.5	kN
Basic static load rating	C₀	11.2	kN
Fatigue load limit	P_u	0.475	kN
Limiting speed		6300	r/min

Mass

Mass bearing unit

0.44

Mounting information

Thread grub screw	G₂	M5
Hexagonal key size for grub screw	N	2.5	mm
Recommended tightening torque for grub screw		4.2	N·m
Recommended diameter for attachment bolts, mm	G	10	mm
Recommended diameter for attachment bolts, inch	G	0.375	in
Appropriate SKF mounting kit		626830

Appertaining products

Housing			FYTBK 506
Bearing			YSP 206 SB-2F

Appropriate products

End cover

ECY 206

Model Number: FYTBK 30 LF
Inner Diameter：30mm Outer Diameter：-mm Width：-mm
Reference speed:6300 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing oval flanged units
