Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing oval flanged units SKF FYTBK 35 WD

FYTBK 35 WD

Housing material

Composite

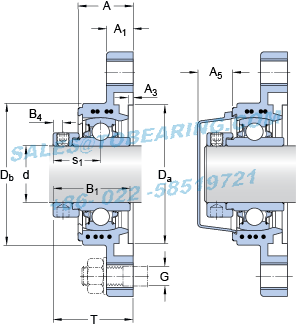

Dimensions

d		35	mm
A		35	mm
A₁		17	mm
A₃	H14	3.2	mm
A₅		22	mm
B₁		51.1	mm
B₄		6.75	mm
D_a	H11	88.9	mm
D_b		90	mm
J		130	mm
H		156	mm
L		96	mm
N		14.8	mm
s₁		32.3	mm
T		53.3	mm

Calculation data

Basic dynamic load rating	C	25.5	kN
Basic static load rating	C₀	15.3	kN
Fatigue load limit	P_u	0.655	kN
Limiting speed		1100	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

0.7

Mounting information

Thread grub screw	G₂	M10x1
Hexagonal key size for grub screw	N	5	mm
Recommended tightening torque for grub screw		16.5	N·m
Recommended diameter for attachment bolts, mm	G	12	mm
Recommended diameter for attachment bolts, inch	G	0.5	in

Appertaining products

Housing			FYTBK 507
Bearing			YELAG 207

Appropriate products

End cover

ECY 207

Model Number: FYTBK 35 WD
Inner Diameter：35mm Outer Diameter：-mm Width：-mm
Reference speed:1100 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing oval flanged units
