Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing oval flanged units SKF FYTJ 35 KF

FYTJ 35 KF

Order adapter sleeve separately
Housing material			Cast iron

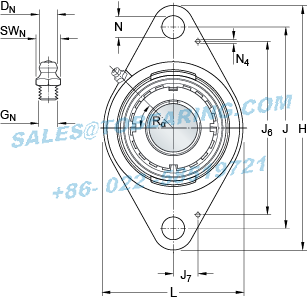

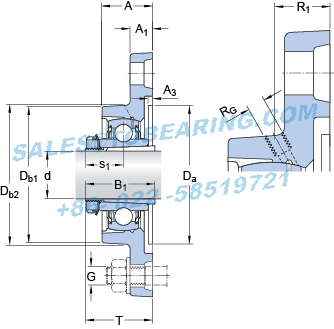

Dimensions

d		30	mm
A		34	mm
A₁		16	mm
A₃	H14	3.2	mm
B₁		43	mm
D_a	H11	88.9	mm
D_b1		87	mm
D_b2		96	mm
J		130	mm
H		161	mm
L		96	mm
N		16	mm
s₁	≈	24.8	mm
T		43.8	mm
Value for s₁ before the sleeve is driven into the bearing bore (sleeve and inner ring bore at starting position).
Threaded hole
R_G		1/4-28 UNF
R₁		20.5	mm
R_a		45	°
Grease fitting
D_N		6.5	mm
SW_N		7	mm
G_N		1/4-28 SAE-LT
Dowel pins
J₆		106	mm
J₇		15	mm
N₄		2	mm

Calculation data

Basic dynamic load rating	C	25.5	kN
Basic static load rating	C₀	15.3	kN
Fatigue load limit	P_u	0.655	kN
Limiting speed		5300	r/min

Mass

Mass bearing unit

1.3

Mounting information

Appropriate spanner		HN 7
Recommended lock nut tightening angle	a	100	°
Recommended diameter for attachment bolts, mm	G	14	mm
Recommended diameter for attachment bolts, inch	G	0.5625	in

Appertaining products

Housing			FYTJ 507
Bearing			YSA 207-2FK
Adapter sleeve			H 2307

Model Number: FYTJ 35 KF
Inner Diameter：30mm Outer Diameter：-mm Width：-mm
Reference speed:5300 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing oval flanged units
Update date：2026-08-24
Application:Handling machinery and various industrial machinery,Insect Capture,climb ladder,hinge industry,hardware,tooth filling,root canal filling,static control,Optical detection,pump industry,outdoor equipment
Similar models:SAW 23534 x 5.7/8 T NATV 35 PPXA PFD 35 TF IR 35x40x20.5 PSM 253525 A51 FYTBK 35 TF W 635-2RS1 SYNT 35 LTS PSM 253535 A51 SAW 23544 TLC
BEARING POWER International Trading Co.,Ltd. specialize in FYTJ35KF products，there is large inventory of SKF FYTJ 35 KF Y-bearing flanged units. We has been built up long-term cooperation with SKF company, could make a bulk order of the FYTJ 35 KF Which SKF FYTJ35KF is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
