Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing oval flanged units SKF FYTWR 25 YTHR

FYTWR 25 YTHR

Housing material

Stainless steel

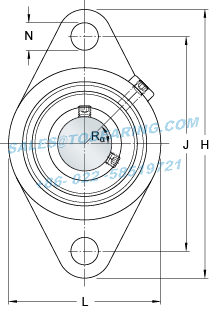

Dimensions

d	25	mm
A	29.4	mm
A₁	13.5	mm
A₅	24.9	mm
B	34.1	mm
B₄	5	mm
D_b1	65.1	mm
D_b2	69.9	mm
J	98.8	mm
H	123.8	mm
L	69.9	mm
N	12.7	mm
s₁	19.8	mm
T	36.5	mm
Threaded hole
R_G	1/4-28 UNF
R₁	18.2	mm
R_a	45	°

Calculation data

Basic dynamic load rating	C	11.9	kN
Basic static load rating	C₀	7.8	kN
Fatigue load limit	P_u	0.335	kN
Limiting speed		4300	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

0.71

Mounting information

Thread grub screw	G₂	M6x0.75
Hexagonal key size for grub screw	N	3	mm
Recommended tightening torque for grub screw		4	N·m
Recommended diameter for attachment bolts, mm	G	10	mm
Recommended diameter for attachment bolts, inch	G	0.4375	in

Appertaining products

Housing			FYTWR 505 Y
Bearing			YAR 205-2RFGR/HV

Appropriate products

End cover

ECW 205

Model Number: FYTWR 25 YTHR
Inner Diameter：25mm Outer Diameter：-mm Width：-mm
Reference speed:4300 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing oval flanged units
Update date：2026-06-24
Application:chemical raw materials and reagents,Anesthetic Equipment,building decoration raw materials and accessories,decoration machinery,Technical Equipment,pneumatic,tray industry,electrocardiograph,electromagnetic clutch,Digital Generator,Low-voltage electrical equipment
Similar models:AOH 2256 G NKI 55/25 TN FSAF 22517 TLC SAF 22520 x 3.5/16 TLC SAFS 22534 x 5.7/8 T SAFS 22540 SSAFS 22536 T PSM 253235 A51 SSAFS 22534 x 5.7/8 T SAFS 22517-11 x 2.7/8 T
BEARING POWER International Trading Co.,Ltd. specialize in FYTWR25YTHR products，there is large inventory of SKF FYTWR 25 YTHR Y-bearing flanged units. We has been built up long-term cooperation with SKF company, could make a bulk order of the FYTWR 25 YTHR Which SKF FYTWR25YTHR is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
