Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- Y-bearing square flanged units SKF FYWK 50 LTA

FYWK 50 LTA

Housing material

Composite for food and beverage

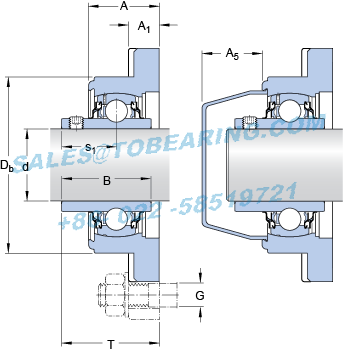

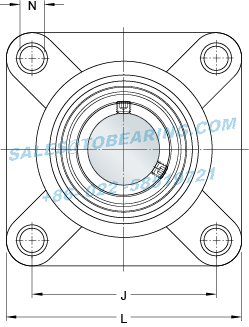

Dimensions

d	50	mm
A	43	mm
A₁	21	mm
A₅	42.7	mm
B	51.6	mm
D_b	114	mm
J	111	mm
L	143	mm
N	17	mm
s₁	32.6	mm
T	57.6	mm

Calculation data

Basic dynamic load rating	C	35.1	kN
Basic static load rating	C₀	23.2	kN
Fatigue load limit	P_u	0.98	kN
Limiting speed		2200	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

1.3

Mounting information

Thread grub screw	G₂	M10x1
Hexagonal key size for grub screw	N	5	mm
Recommended tightening torque for grub screw		16.5	N·m
Recommended diameter for attachment bolts, mm	G	16	mm
Recommended diameter for attachment bolts, inch	G	0.625	in

Appertaining products

Housing			FYWK 510 L
Bearing			YAR 210-2RF/VE495

Appropriate products

End cover

ECL 210

Model Number: FYWK 50 LTA
Inner Diameter：50mm Outer Diameter：-mm Width：-mm
Reference speed:2200 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units Y-bearing square flanged units
Update date：2026-06-25
Application:hydraulic pump,pump accessories,medical equipment,Cylinder Special,X-ray Equipment,equipment and,Sensors,Spectrum Products,small diesel generators,metallurgy,Polymer
Similar models:K 50x58x20 230/750 CAK/W33 GEP 950 FS FYC 508 TUJ 509 PL 950 SAF 1509 x 1.3/8 T LM 503349 A/310 FYJ 50 KF 230/850 CAK/W33
BEARING POWER International Trading Co.,Ltd. specialize in FYWK50LTA products，there is large inventory of SKF FYWK 50 LTA Y-bearing flanged units. We has been built up long-term cooperation with SKF company, could make a bulk order of the FYWK 50 LTA Which SKF FYWK50LTA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
