Coupling systems -- Flexible shaft couplings -- Gear couplings, types HCCE and HCRE -- -- SKF HCCE 035 R

HCCE 035 R

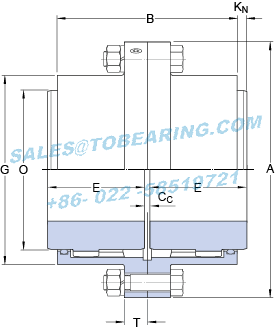

Dimensions

Flexible half, shaft diameter
min.		47	mm
max.		127	mm
Other dimensions
A		279	mm
B		195	mm
C_C		6	mm
E		106	mm
G		201	mm
K_N		12	mm
O		165	mm
T		29	mm
One hub reversed
C_L		27	mm
Both hubs reversed
C_W	min.	6	mm
C_W	max.	52	mm

Calculation data

Torque, continuous		max.	16.9	kN·m
Speed		max.	3900	r/min

Mass

Mass gear coupling, undrilled hubs

Model Number: HCCE 035 R
Inner Diameter：47mm Outer Diameter：279mm Width：-mm
Reference speed:- Limiting speed:-
Type：Coupling systems Flexible shaft couplings Gear couplings, types HCCE and HCRE
