Coupling systems -- Flexible shaft couplings -- Disc couplings, type KD -- -- SKF KD10-554

KD10-554

Dimensions

Shaft diameter
min.	95	mm
max.	159	mm

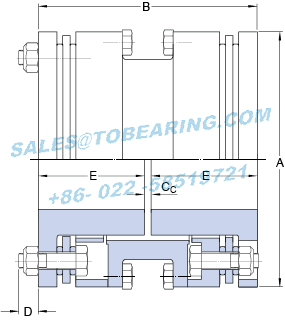

Other dimensions
A	384	mm
B	259	mm
C_C	8	mm
D	33	mm
E	176	mm
G	222	mm

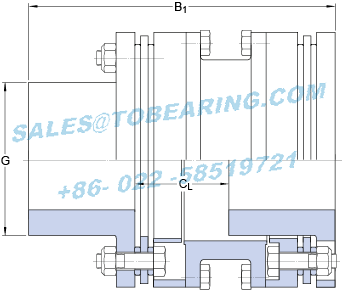

One hub reversed
B₁	504	mm
C_L	153	mm

Calculation data

Torque, continuous	max.	57.07	kN·m
Speed, not balanced	max.	1900	r/min
Speed, balanced	max.	3000	r/min
Total WR²		3.84	kg·m²
Axial capacity	±	7.6	mm

Mass

Mass disc coupling

183

Model Number: KD10-554
Inner Diameter：95mm Outer Diameter：384mm Width：-mm
Reference speed:- Limiting speed:-
Type：Coupling systems Flexible shaft couplings Disc couplings, type KD
Details：
Update date：2026-03-11
Application:internal combustion engine,spectrometer,Broadcasting System,special broaching machine,storage and transportation equipment,lathe,joint protection,mathematical instruments,Rolling mill gear box,rock drilling machinery,DC generators
Similar models:KD10-554 XHCE 070/OK 210 XHCE 040/OK 110 KDMS 704-460/210 KD10-604 KD10-504 KD10-254 KD2-103 SHT 100 KD10-805
BEARING POWER International Trading Co.,Ltd. specialize in KD10-554 products，there is large inventory of SKF KD10-554 . We has been built up long-term cooperation with SKF company, could make a bulk order of the KD10-554 Which SKF KD10-554 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
