Bearings, units and housings -- Track rollers -- Cam followers -- Cam followers -- SKF KR 19 PPXA

KR 19 PPXA

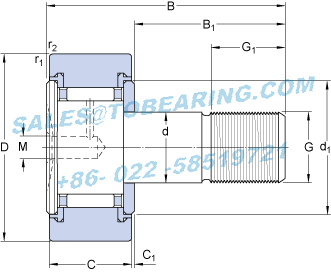

Dimensions

D		19	mm
d		8	mm
B		32	mm
C		11	mm
B₁		20	mm
C₁		0.6	mm
d₁		15	mm
G		M 8
G₁		10	mm
M		4	mm
r_1,2	min.	0.15	mm

Calculation data

Basic dynamic load rating	C	3.47	kN
Basic static load rating	C₀	3.8	kN
Fatigue load limit	P_u	0.415	kN
Maximum dynamic radial loads	F_r	3.8	kN
Maximum static radial loads	F_0r	5.5	kN
Limiting speed		5600	r/min

Mass

Mass cam follower

0.029

Mounting information

Recommended tighthening torque

N·m

Included products

Grease fitting			NIP A1
Hexagonal nut			M 8x1.25

Associated products

Plug

VD1

Model Number: KR 19 PPXA
Inner Diameter：-mm Outer Diameter：19mm Width：11mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Track rollers Cam followers Cam followers
Details： Cam followers
Update date：2026-06-25
Application:fabric products,X-ray Equipment,Digital Generator,position switch,Traffic Fire Protection Equipment Security equipment,defogging and degreasing,Hydraulic Rama,car steering pin,pneumatic,other lathe,security equipment
Similar models:71972 CDMA/P4A S71917 CD/HCP4A KRVE 19 PPA S71904 CE/P4A 71907 CB/HCP4A 71919 CE/P4AH1 W 619/6 R-2Z BT4-8022 G/HA1VA919 61914-2RS1 KMTA 19
BEARING POWER International Trading Co.,Ltd. specialize in KR19PPXA products，there is large inventory of SKF KR 19 PPXA Cam followers. We has been built up long-term cooperation with SKF company, could make a bulk order of the KR 19 PPXA Which SKF KR19PPXA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
